ALITOVE 16.4FT WS2815 LED Strip Individually Addressable Chasing LED Light Strip 12V Programmable 4pin RGB LED Tape Light 60 LEDs/M IP65 Waterproof

Vendor: ALITOVE
SKU: WS2815-300BK-IP65
Availability: In Stock
Product Type: LED Strip Light
$44.99
$47.99
$44.99
Save $3.00
Please hurry! Only 100 left in stock
Subtotal: $44.99
Ask An Expert
10 customers are viewing this product

Fast, Safe Shipping

Hassle-Free Warranty

30-Day Money Back Guarantee

Lifetime Customer Support

Color LED Strip

ALITOVE 16.4FT WS2815 LED Strip Individually Addressable Chasing LED Light Strip 12V Programmable 4pin RGB LED Tape Light 60 LEDs/M IP65 Waterproof

$47.99 $44.99
Color LED Strip
Color LED Strip
Color LED Strip
Color LED Strip
Color LED Strip
Color LED Strip
Color LED Strip
Color LED Strip

ALITOVE 16.4FT WS2815 LED Strip Individually Addressable Chasing LED Light Strip 12V Programmable 4pin RGB LED Tape Light 60 LEDs/M IP65 Waterproof

$47.99 $44.99
Product Description
Product Description
x

Parameter:

  • Model: WS2815BK300EWP

  • Light source: 5050 RGB LED
  • LED Qty: 60pcs per meter
  • Wave length (NM): R,620~625nm ; G,515~525nm; B,465~475nm
  • The gray level: 256
  • Color: full color (24-bit )
  • View angle:120°
  • Voltage: DC 12V (Please NEVER use higher than 12V or you will destroy the entire strip.)
  • Power: 14.4 W/M
  • Waterproof: Waterproof IP65
  • Dimension: 5000*12*4mm
  • Package: 16.4ft/roll
  • Life span:≥50000hrs
  • FPCB color: Black
  • Working environment: -40℃to +80℃

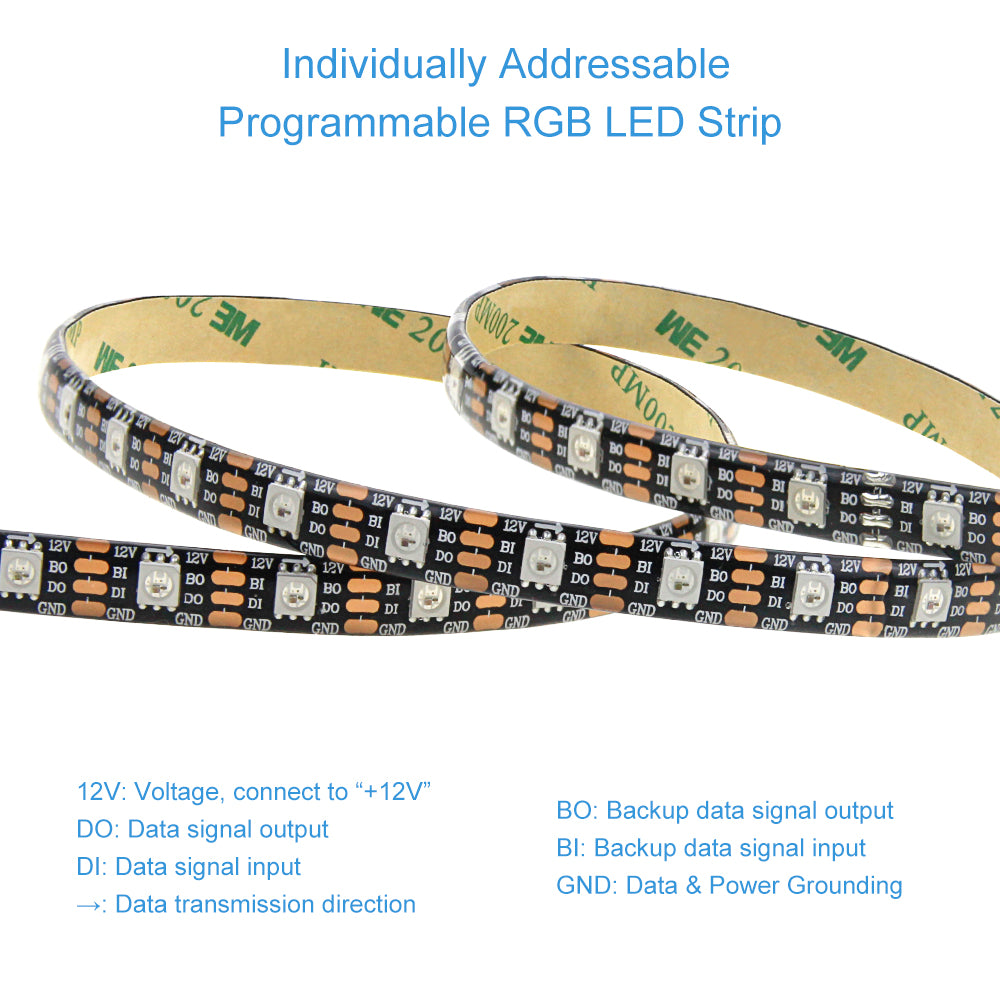

  • Red wire: 12V+ / Black Wire: GDN / Yellow wire: Data / Green wire: Backup Data

Package List:

  • 1x 16.4ft 300 pixels WS2815 led strip (Power supply and controller are not included)
  • 1x 4PIN JST connector



455

323
323

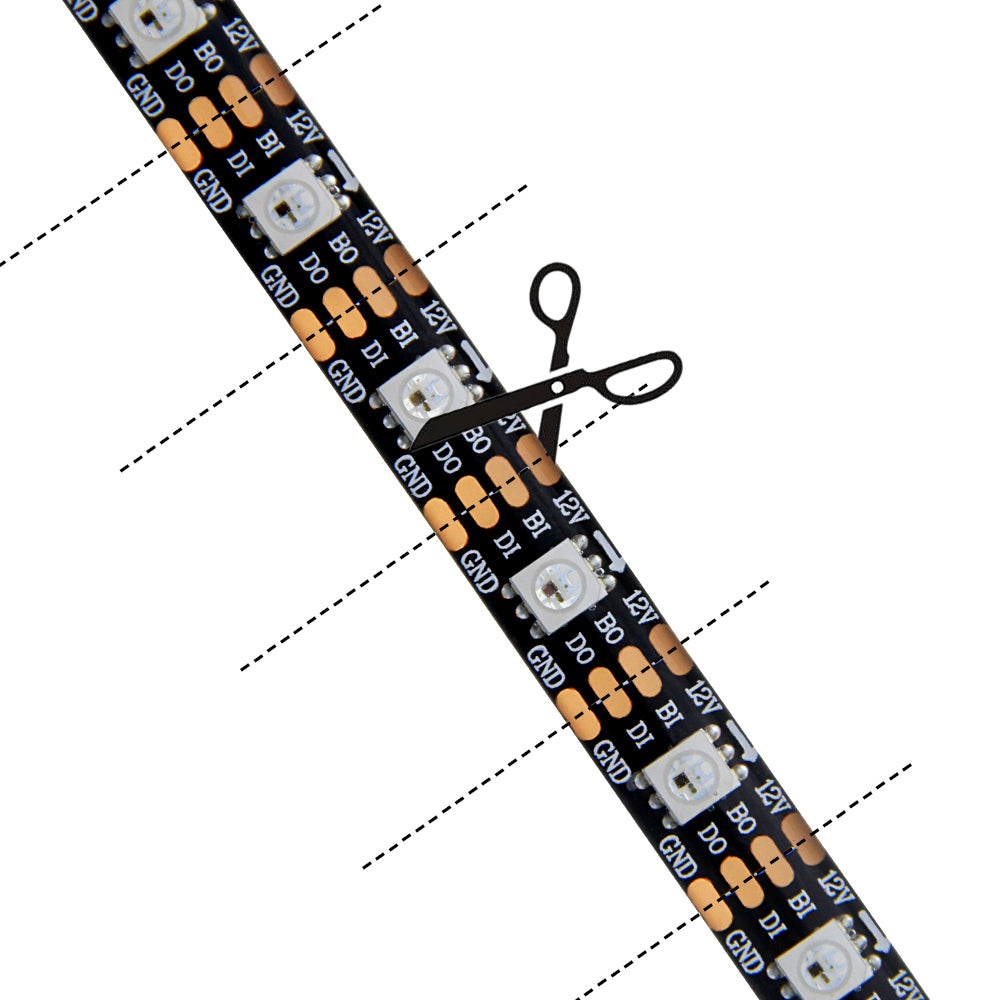

Cut and weld freely

Each LED is an independent and complete circuit cell. It can be cut and welded at the cutting line to meet your requirements.

Flexible design

The flexible FPCB plate is used as substrate. So WS2815 LED strip can be gently bent and curved around surfaces.
chain
09

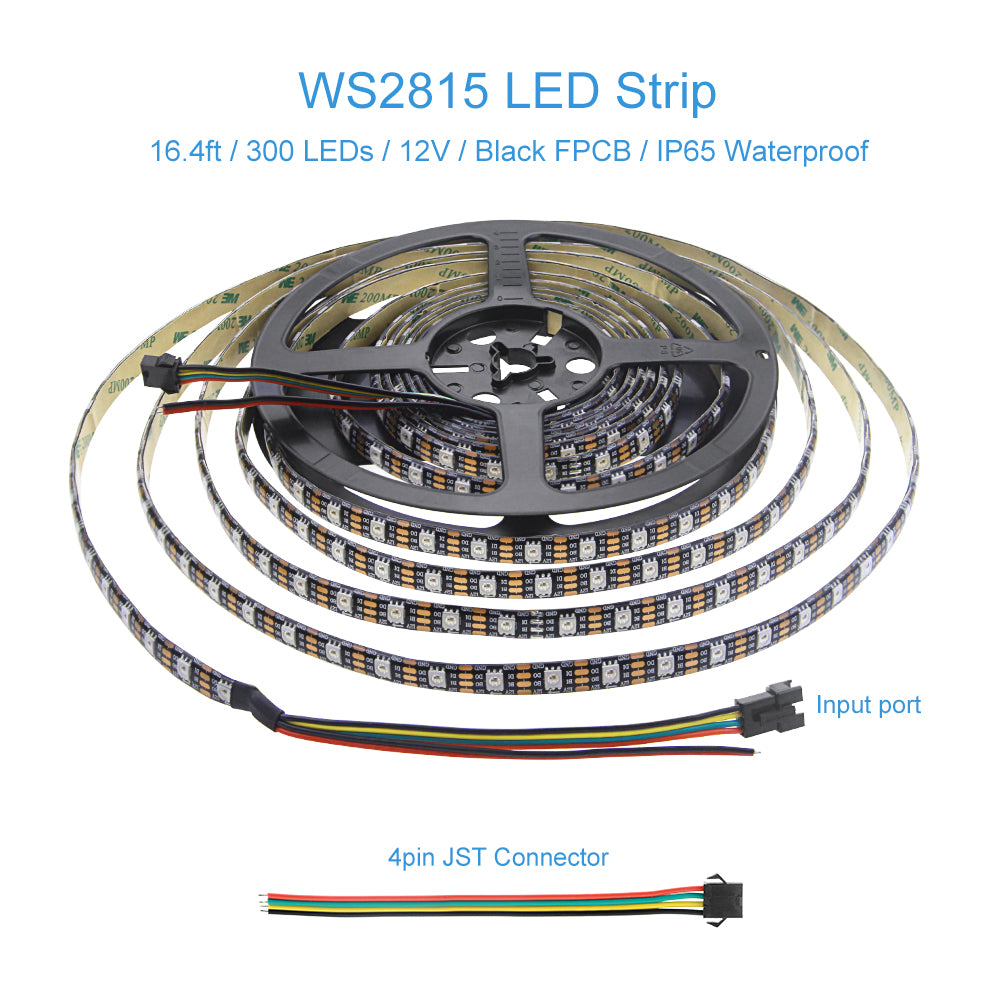

Chainable design

There are 4pin JST connectors on both ends. The LED strips can be hooked up one by one without soldering.

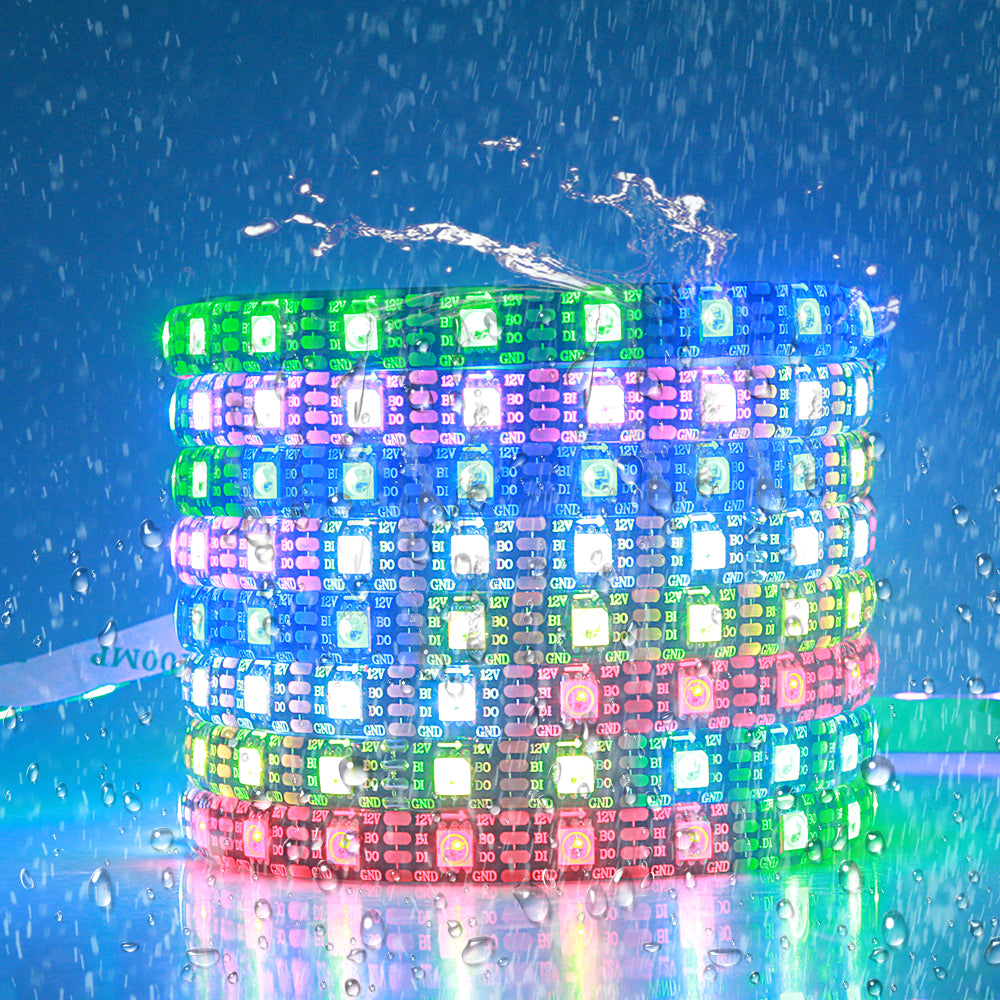

Waterproof IP65

Silicone waterproof coating covers the led strip, protecting it very well. Waterproof grade reaches IP67. It can be used outdoor.



Application Cases

Product Feature

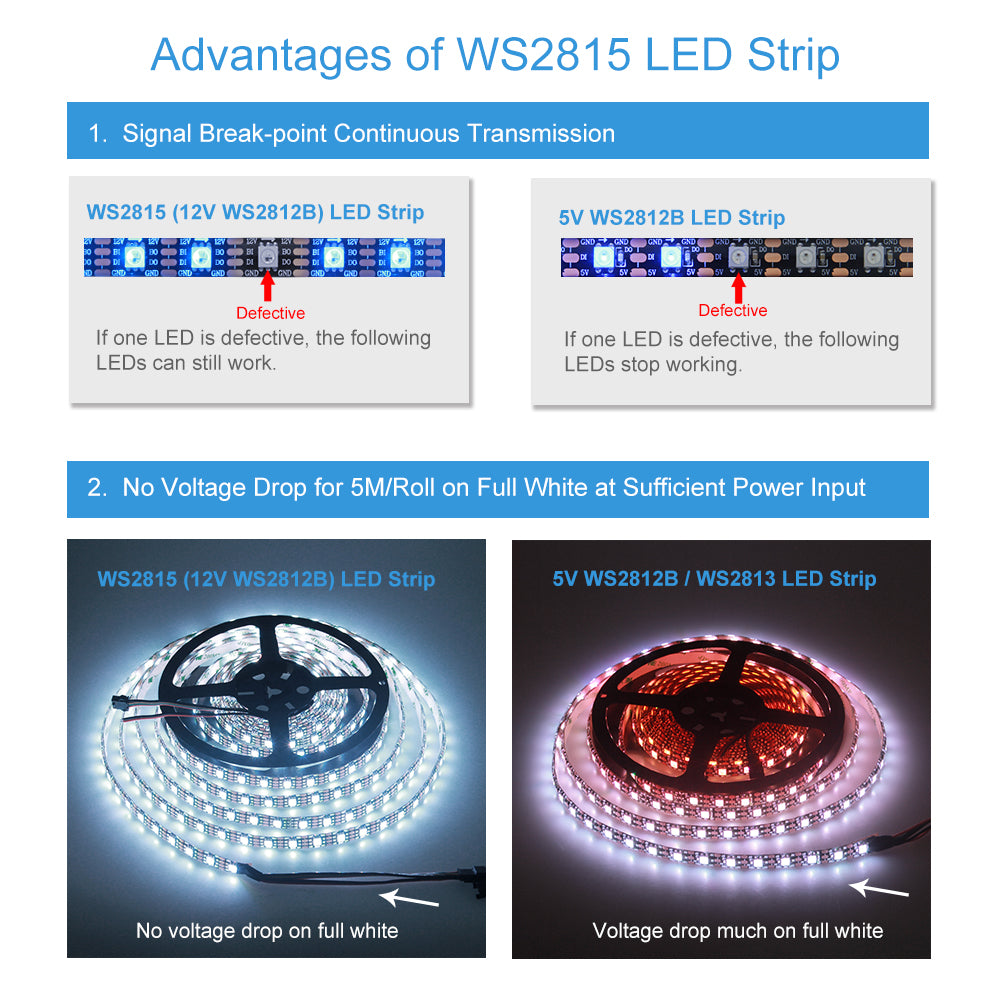

What are the advantages of WS2815 LED Strip?

WS2815 LED strip is 12V WS2812B/WS2813, upgraded version of 5V WS2812B/WS2813. It is also individually addressable LED like 5V WS2812B/WS2813, but it has two extra advantages.

  1. 12V DC input: For 5M LED strip, even if all the LEDs are turned on full white, WS2815 LED strip has no voltage drop. You don't need to inject power as frequently as 5V version.

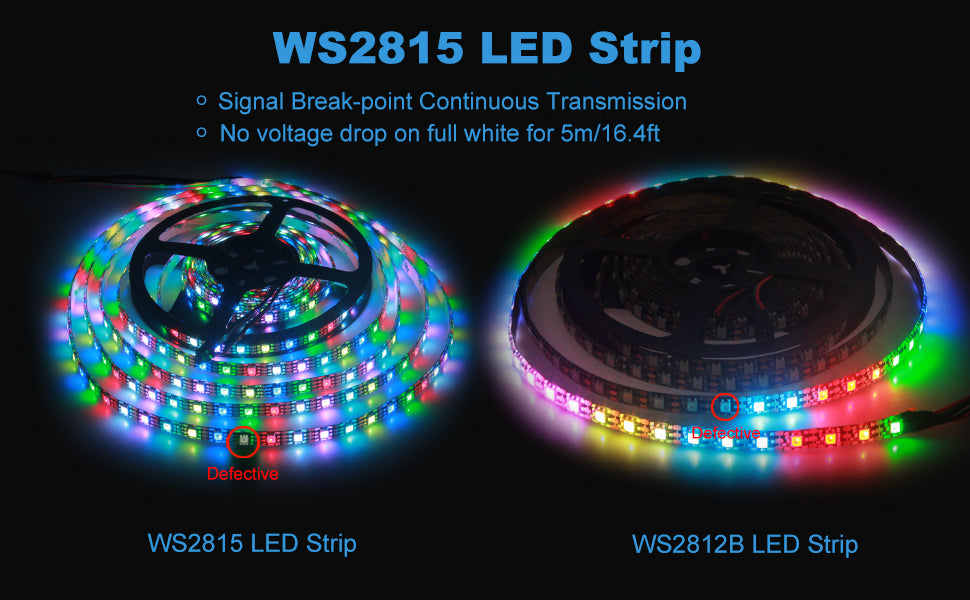

  2. Dual-signal wires: Designed with one data wire and one backup data wire. Signal break-point continuous transmission. When one LED burns out, the other LEDs will keep working.

So it is very suitable for large lighting project such as city skyline lighting, building outline decoration, HD advertising screen, shopping malls decoration etc. It will greatly reduce the maintenance cost of your projects
  • 【12V WS2815 LED Strip】 WS2815 LED strip is upgraded version of 5V WS2813 / WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don’t need to inject power as frequently as 5V version.
  • 【Dual-signal wires】 Designed with one data wire and one backup data wire. Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.

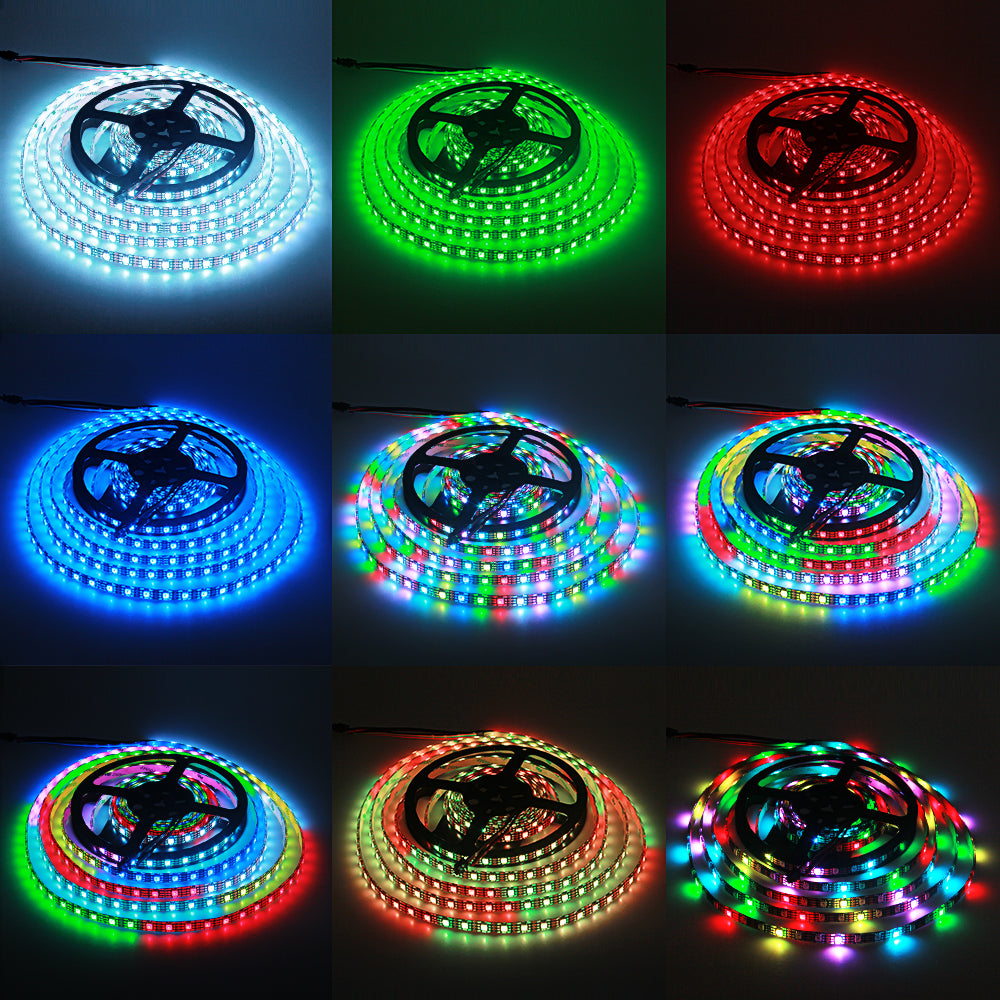

  • 【Individually addressable】Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.
  • 【Wide compatibility】It can be programmed with K1000C T1000S etc. It can also be controlled by SP105E SP108E pre-programmed app controllers and SP107E Colorful x2 sound activated music controllers.
  • 【User-friendly Design】Designed with 4pin JST-SM connectors and separate power/ground wires on both ends for easy hooking up and injecting power. Covered by IP65 waterproof silicone coating, which protects it very well. Self-adhesive tape on back for easy installation on dry and flat surface.
