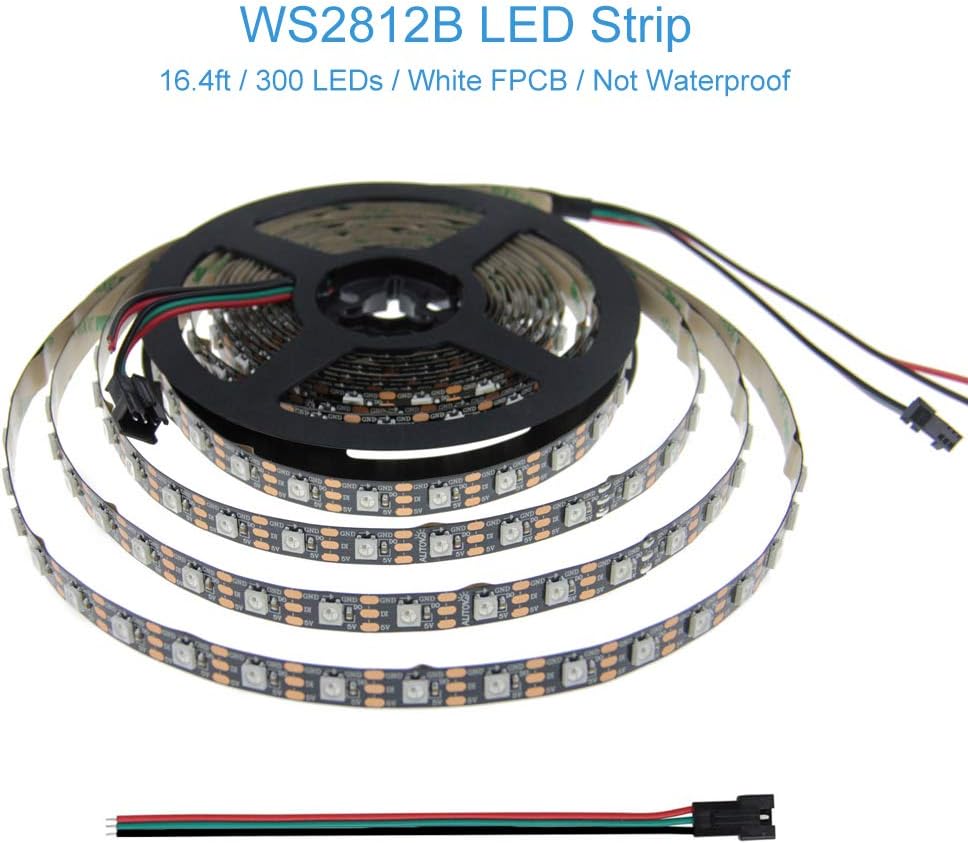

ALITOVE 16.4FT WS2812B Addressable LED Strip Light - 300 Pixels RGB Dream Color, Non-Waterproof

Parameter:

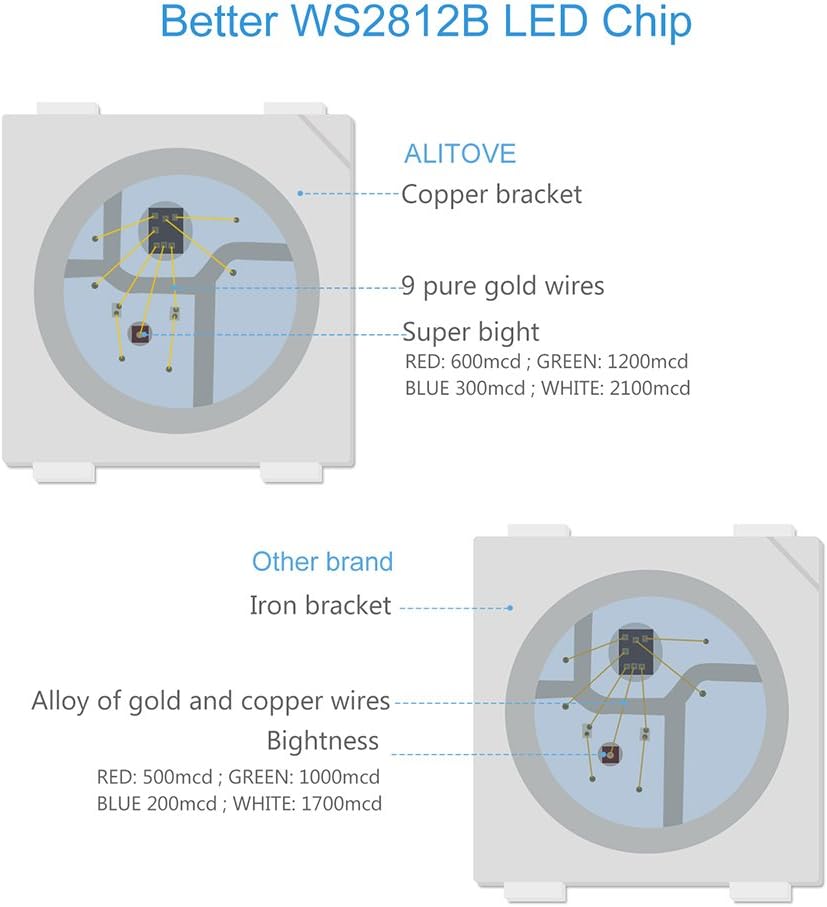

• Light source: 5050 RGB LED with built-in WS2812B driver IC

• LED Qty: 60 LED/M, 300 LED/Roll
• Wave length: R,620~625nm ; G,515~525nm; B,465~475nm ; 24 bit full color ; 256 gray levels ;
• Working voltage & power: DC 5V; 0.2W/LED; 12W/M; 60W/Roll
• Waterproof level: Waterproof IP20
• Dimension: (L)5000mm * (W)12mm * (H)4mm; 16.4ft/5m per roll
• Port scanning frequency reaches to 2KHz/s ; Data transmitting speed is up to 800Kbps
• RGB order: GRB (Not RGB) ( Please set up the controller before you use it. )

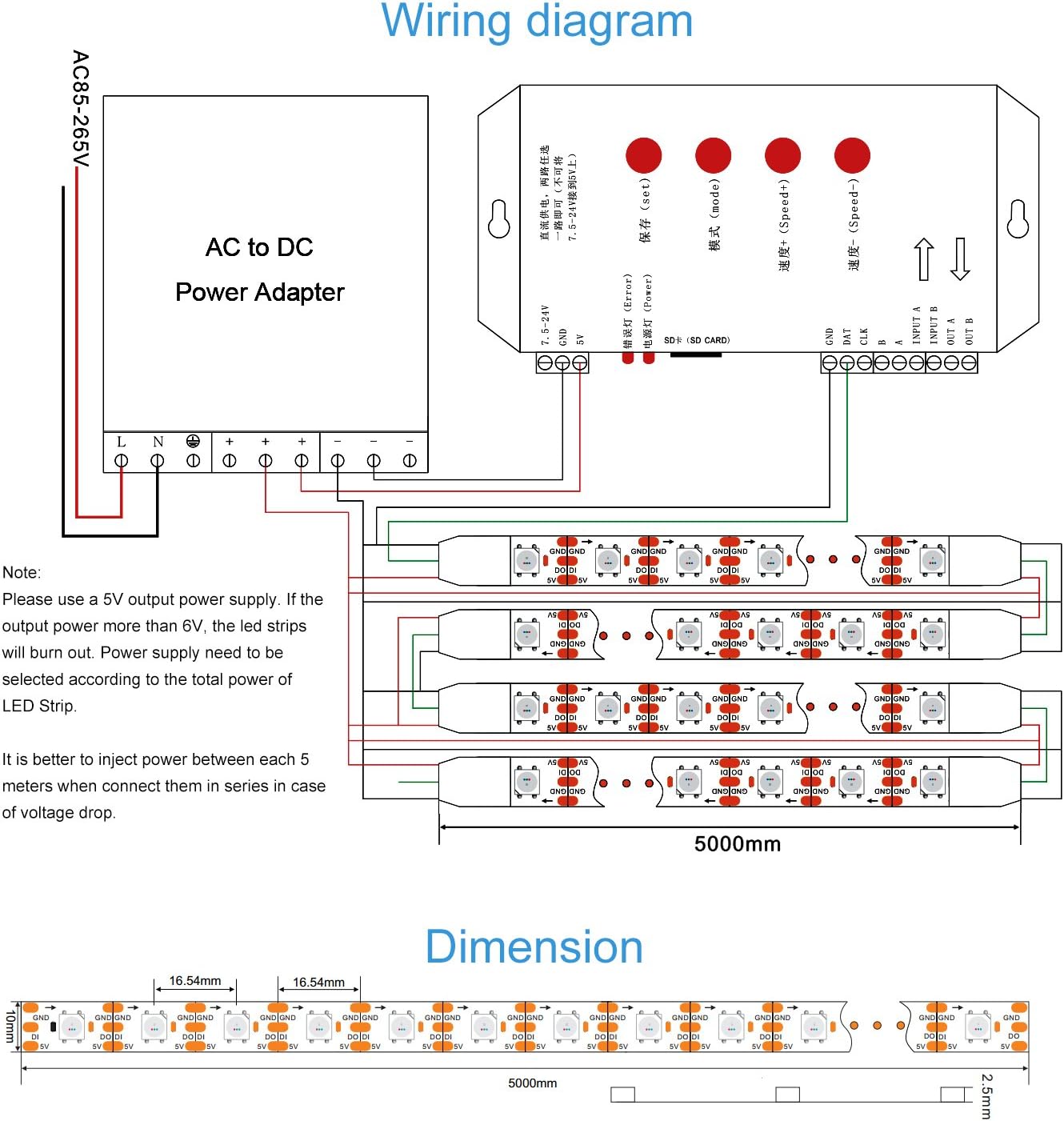

• Wire instruction: Red wire: 5V+ ; Black Wire: GDN ; Green wire: Data
• Life span:≥50000hrs; FPCB color: Black
• We can customize the LED strips according to your requirements.

What you will get:

• 1x 16.4ft/5m 300 pixels Black PCB Not Waterproof WS2812B led strip (Power supply and controller are not included)

• 1x Male 3PIN JST connector

• 【Individually addressable LED】WS2812B RGB 5050 LED. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want. 256 gray levels adjustable and 24-bit color display.
• 【Support Many Controllers】Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP105E SP108E SP110E app controllers, SP106E SP107E music controllers, SP501E and MHCTRWF5V smart WiFi Controllers.
• 【Great for DIY】Each LED can be cut and welded freely along the cutting line to meet different length requirements. There are self-adhesive tape on its back, you can easily install it on any dry and flat surface. Flexible design, you can bend it to any shape you want.
• 【User-friendly Design】Designed with 3pin JST-SM connectors on both ends for easy hooking up. Separate power/ground wires on both ends for injecting power in case of voltage drop. Covered by silicone waterproof coating, which protects it very well and makes it easy to clean, up to IP65 waterproof.
• 【Wide Application】 It can be used to make led screen, led wall, advertising board and widely applied to hotel, KTV, bars, Outdoor advertising signs, wedding party lighting, home and car decoration, city skyline, building outline and so on.

Cut and weld freely

Each LED is an independent and complete circuit cell. It can be cut and welded at the cutting line to meet your requirements.

Easy installation

The flexible FPCB plate is used as the substrate. So WS2812B LED strip can be gently bent. Please don't curve it to acute angle.

Extendable design

There are 3pin JST connectors on both ends. The LED strips can be hooked up one by one without soldering.

Easy installation

It comes with self-adhesive tape on its back. You can fix it on any dry and flat surface without any screws and clips.
