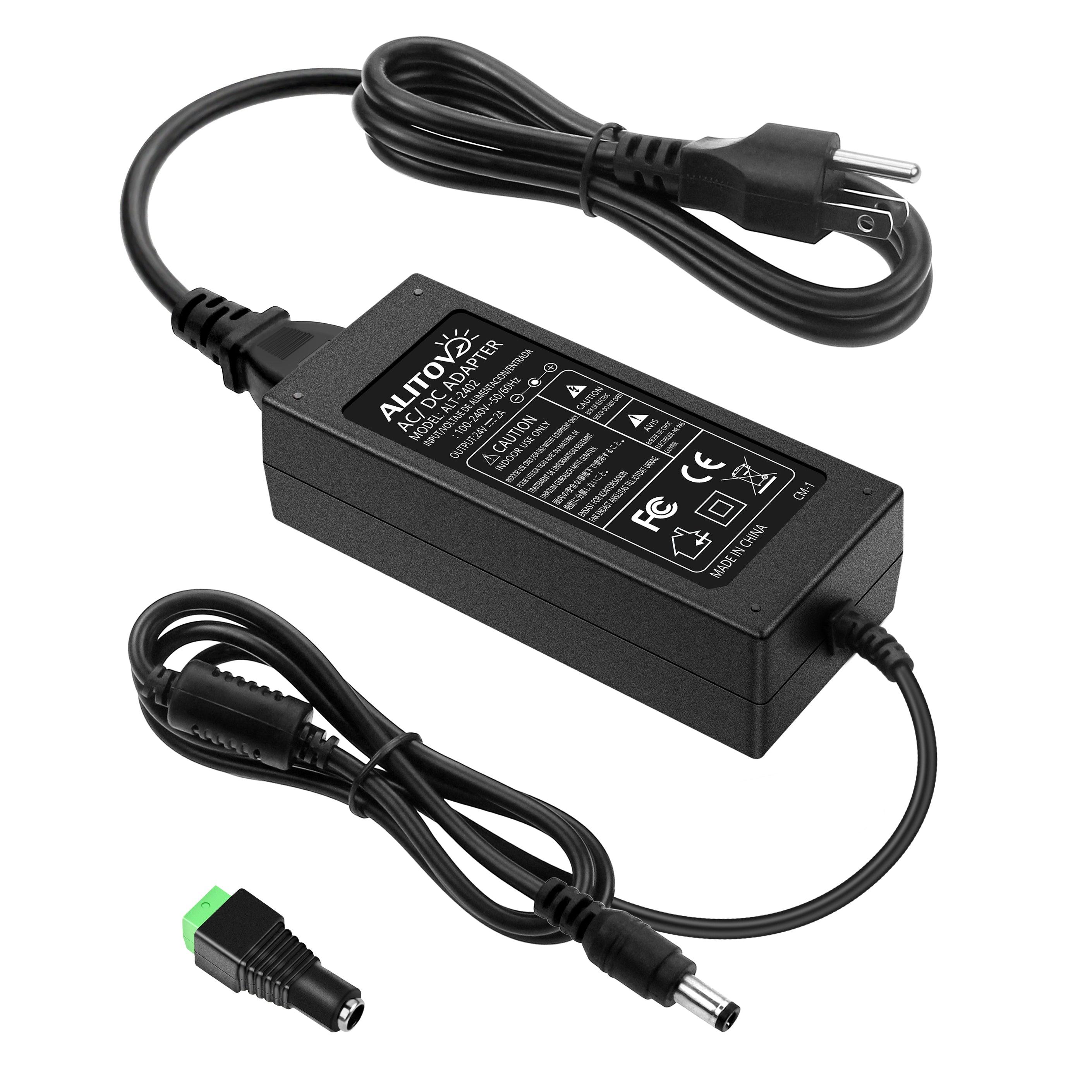

ALITOVE 24V 2A Power Adapter - Perfect for LED Strip Lights and Various Devices

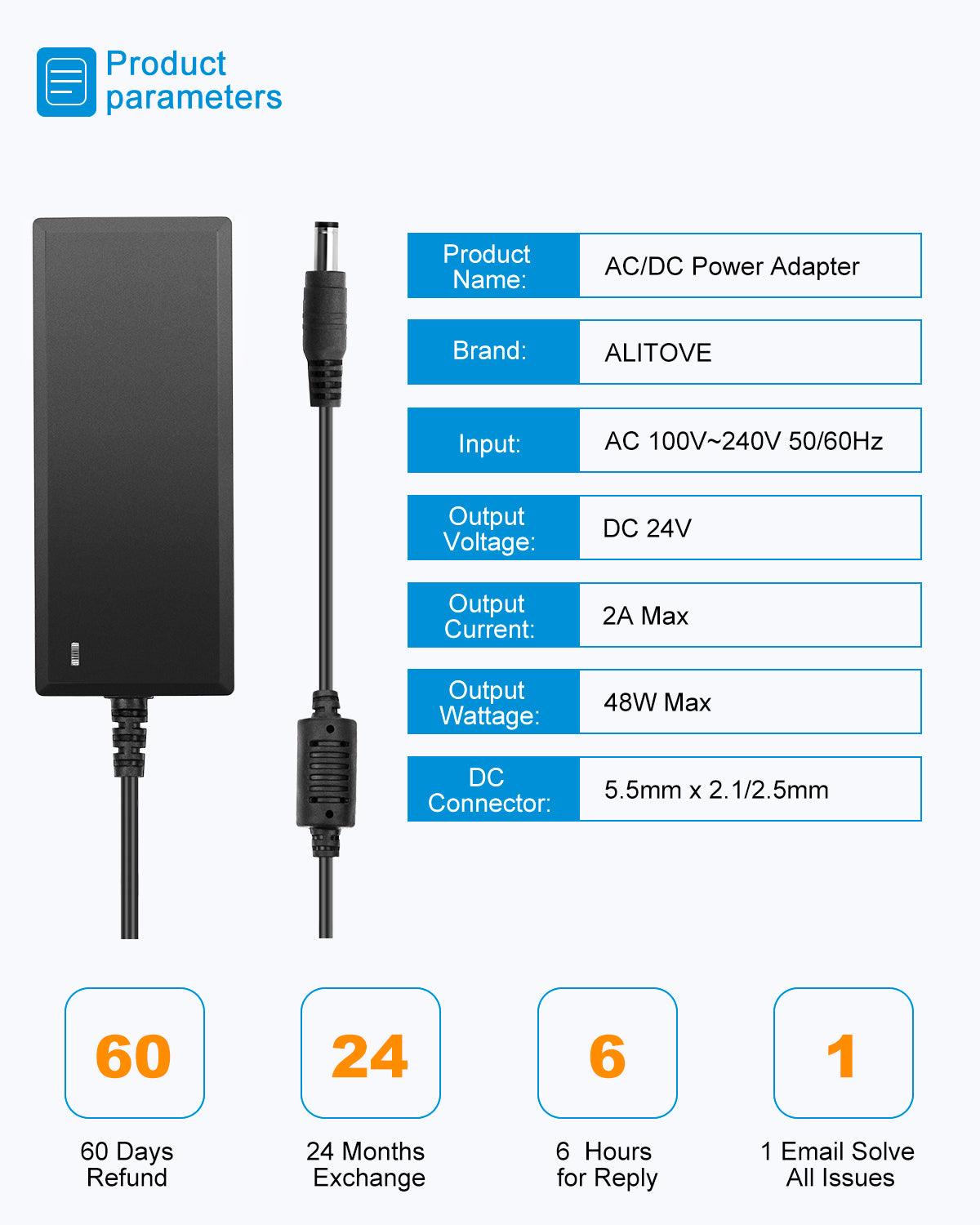

Parameter:

• Input: 100~240V AC, 50/60Hz

• Output voltage: 24V DC
• Output current: 2A max
• Output wattage: 48W max

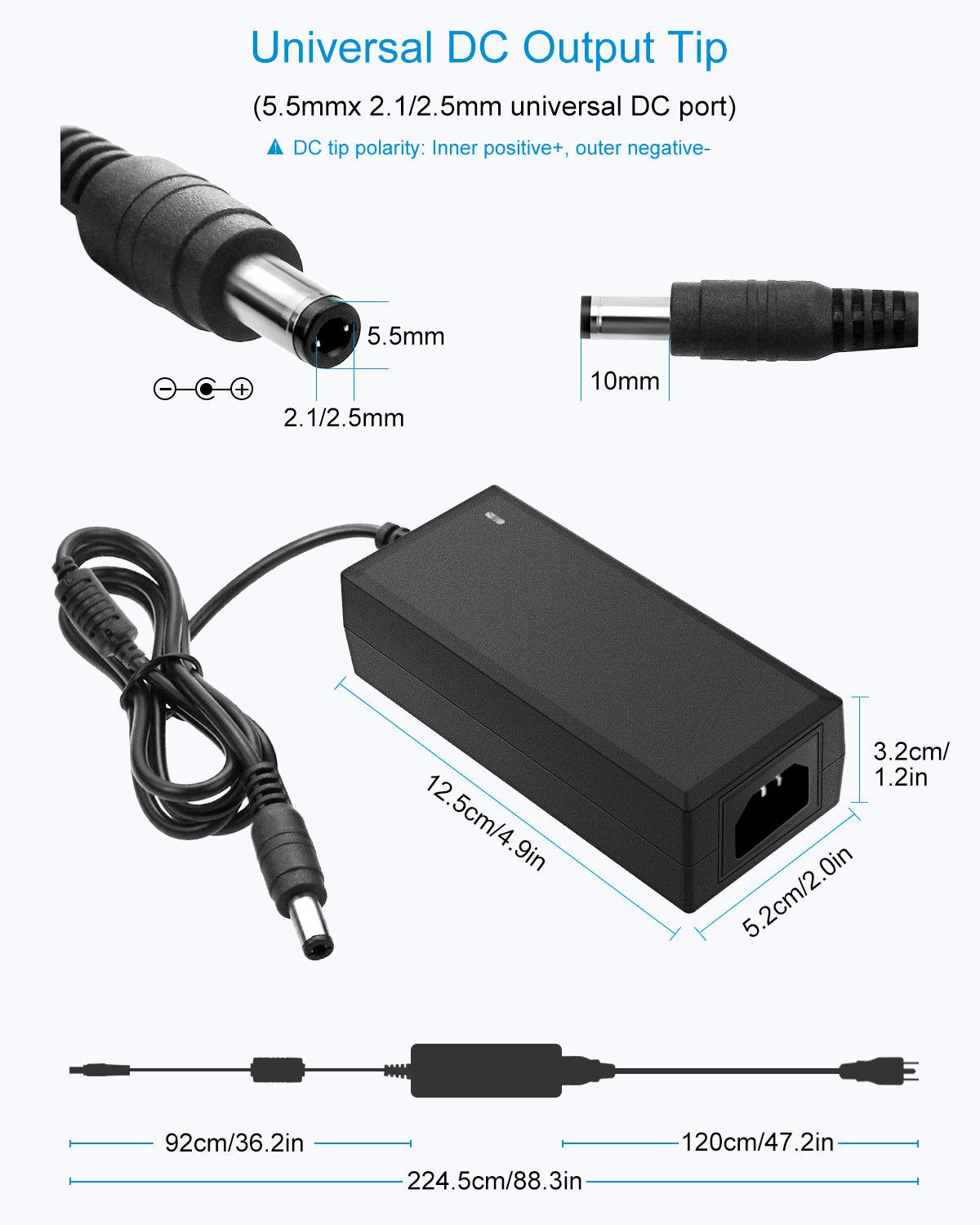

• Dimensions: Please refer to the picture.
• DC plug connector size: 5.5mmx2.5mm; 5.5mmx2.1mm compatible
• Polarity: internal "+", outside"-"
• Working Temperature: -20~60℃
• Ambient Humidity: 0~95% Non-Condensation
• Safety Compliance: FCC/CE/RoHS
• Weight: 0.55 lb / 250g

Precautions:

Please choose correct power supply before place the order. Wrong power supply will damage your equipment!

If you don't know what power supply you should buy, please let us know, we will help you. This is a constant voltage power supply.

How to choose correct power supply?

1. Check Voltage:

Please check the parameter label of your device and check the working voltage. It should be 24V DC, not be AC 24V or lower/higher than 24V DC. Otherwise, your device will not work or be damaged.

2.Check Current:

Check the max current your device will draw. It should be equal to or less than 2A, such as 0.5A, 1A, 1.5A, 2A. Otherwise, your device won’t work well and the power supply will be damaged very soon.

3. Check power input port:

Check the power input port of your device. Its outer diameter should be 5.5mm; inner core diameter should 2.5mm or 2.1mm. Inner core polarity should be"+", exterior polarity should be" - ". Otherwirse, the power supply can't be plugged into your device.

If your device's voltage is 24V DC, the current is less than 2A, the power port is 5.5mm x 2.5mm or 5.5mm x 2.1mm, and the inside polarity is "+", outside polarity is "-", you can choose this 24V 2A power supply. Otherwise, please choose other power supply according to above instructions.

Superior Safety

Flame-retardant exterior shell and built-in safeguards to protect against overheat, overload, over-charging, short-circuit provide ultimate protection for you and your devices.

Stable Output

Built-in advanced synchronous rectifier smart chip and EMI filter, convert fluctuating voltage to stable voltage, effectively reduce electromagnetic interference, ensure stable voltage output.

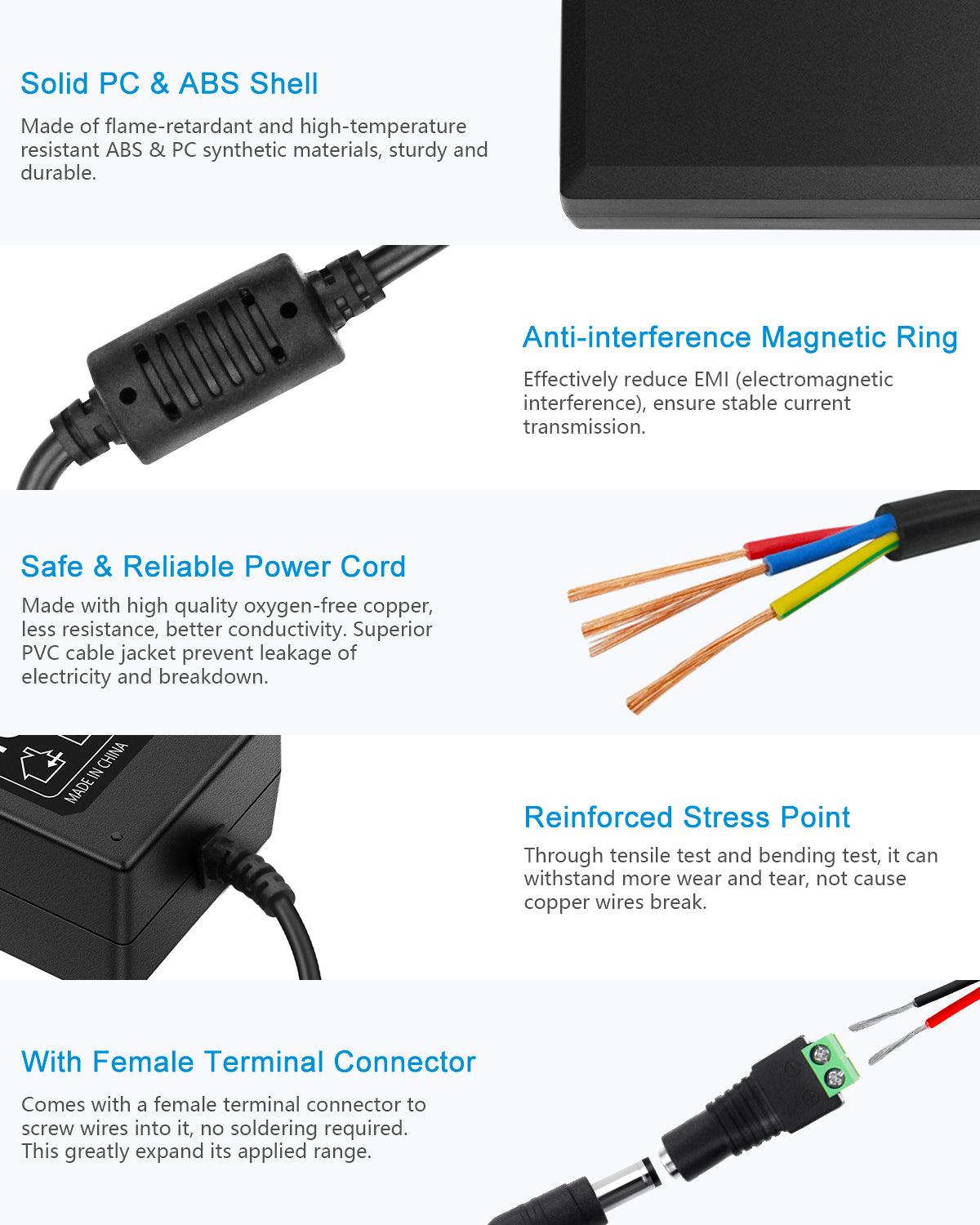

High-quality Cable

3x 0.75 mm² (18AWG) copper conductors, individual wire insulation and flexible flame -retardant PVC jacket provide you a safe and reliable cable with better conductivity.

Durable Design

Robust casing protects against scratches,bumps, drops, withstands pressure and keeps internal components safe during emergencies enhanced longevity.

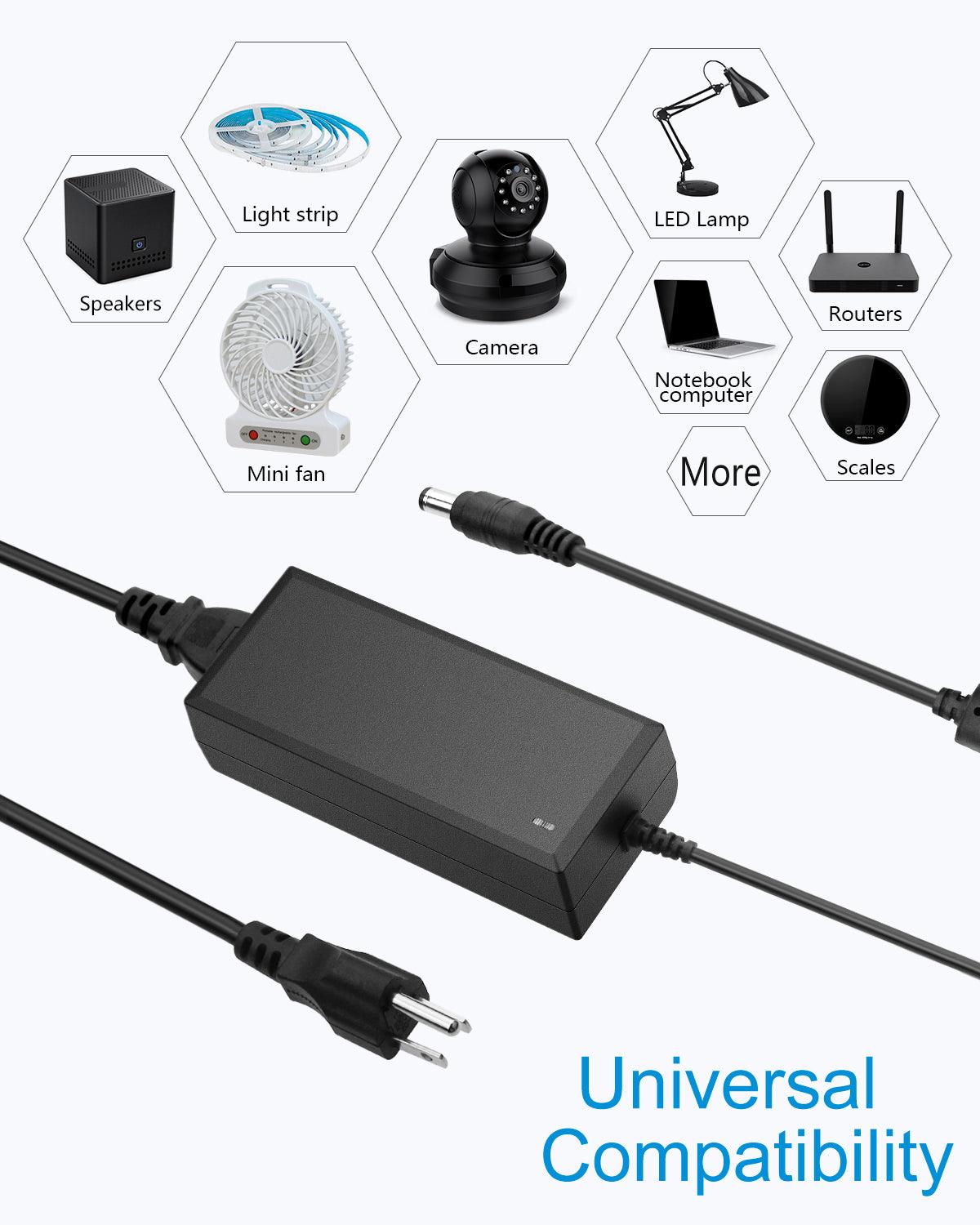

Broad Compatibility

Max 2A ouput means it can only supply with amperage less than 2A. ---such as 0.5A, 0.8A,1A,1.6A. If your device draws 1.5A,1.5A will be supplied. But if draws more than 2A, only 2A will be supplied.
