ALITOVE Dream Color LED Strip - 16.4ft, 150 Pixels, Waterproof, 5V, Black PCB IP65

Parameter:

• Name: ALITOVE WS2812B 5M/roll 150 pixels LED strip

• Light source and LED Qty: 5050 RGB LED,30pcs per meter
• Wave length (NM): R,620~625nm ; G,515~525nm; B,465~475nm
• The gray level: 256 ; Color: full color (24-bit ) ; View angle:120°
• Voltage,Max current and Max power: DC 5V 6A 30W
• Waterproof and FPCB board color: Waterproof IP65,Black
• Dimension: 5000*12*3mm
• RGB order: Green/Red/Blue ( Please set up the controller before you use it. )

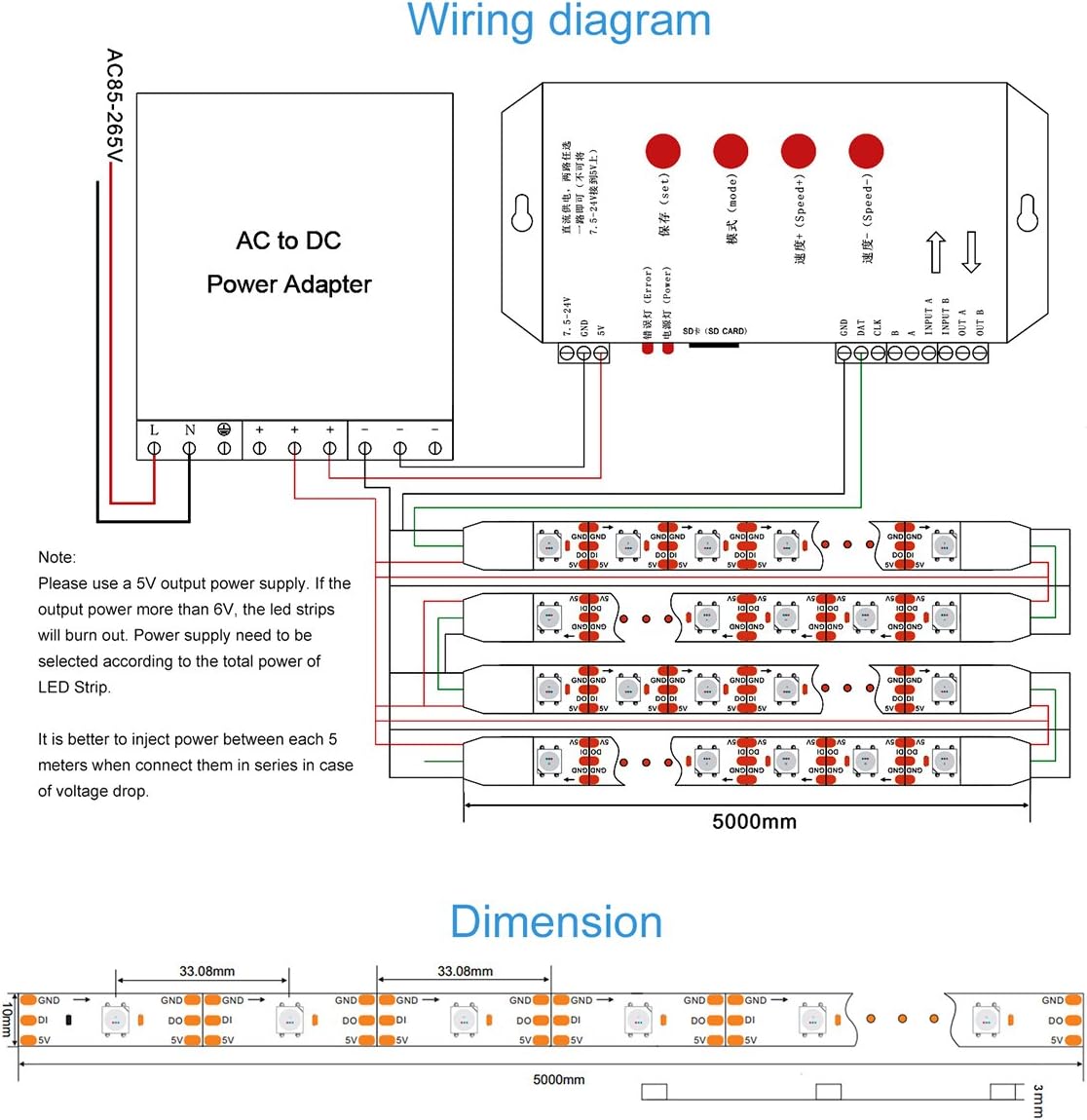

• Red wire: 5V+ ; Black Wire: GDN ; Green wire: Data

What you will get:

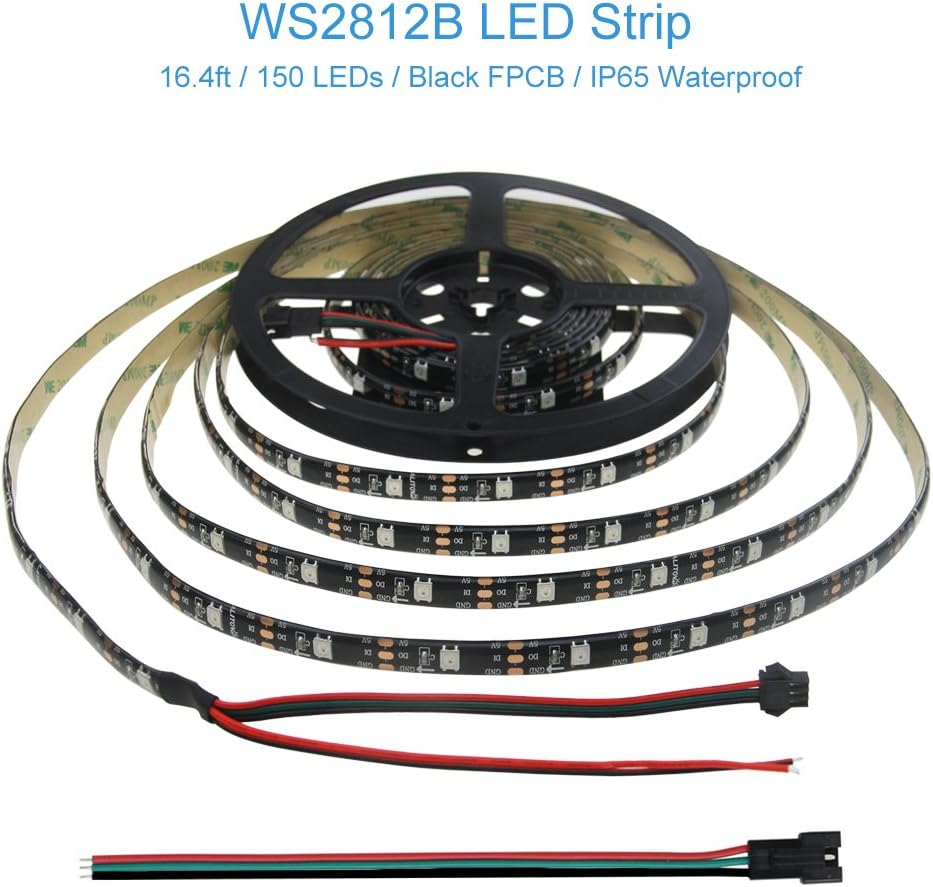

• 1x 16.4ft 150 pixels WS2812B led strip (Power supply and controller are not included)

• 1x Male 3PIN JST connector

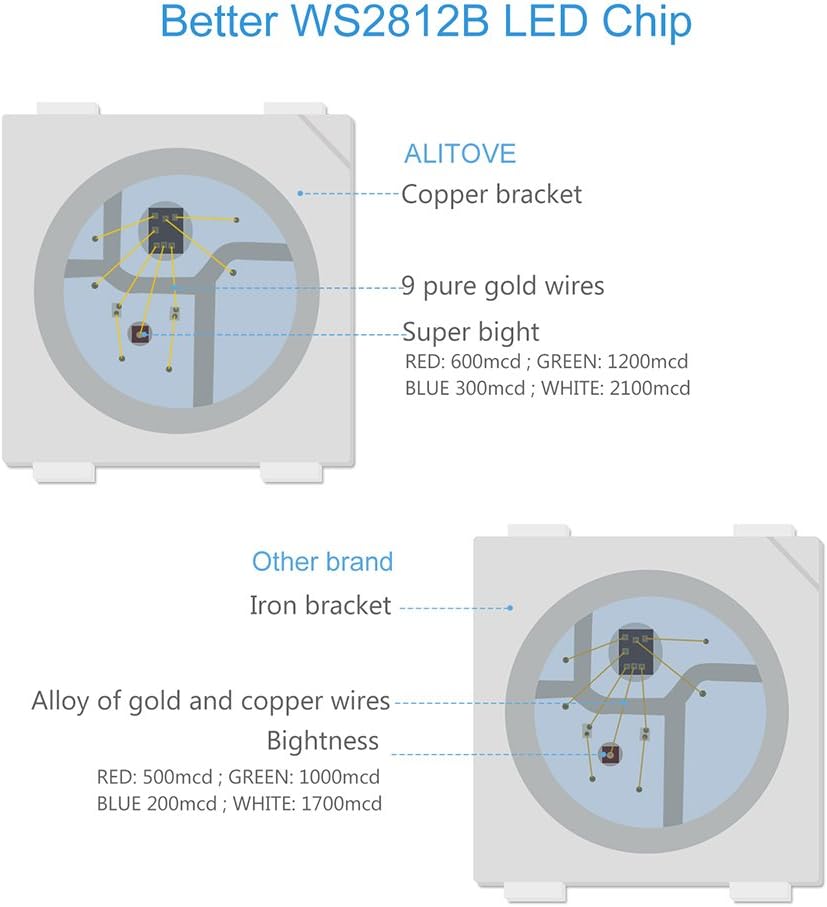

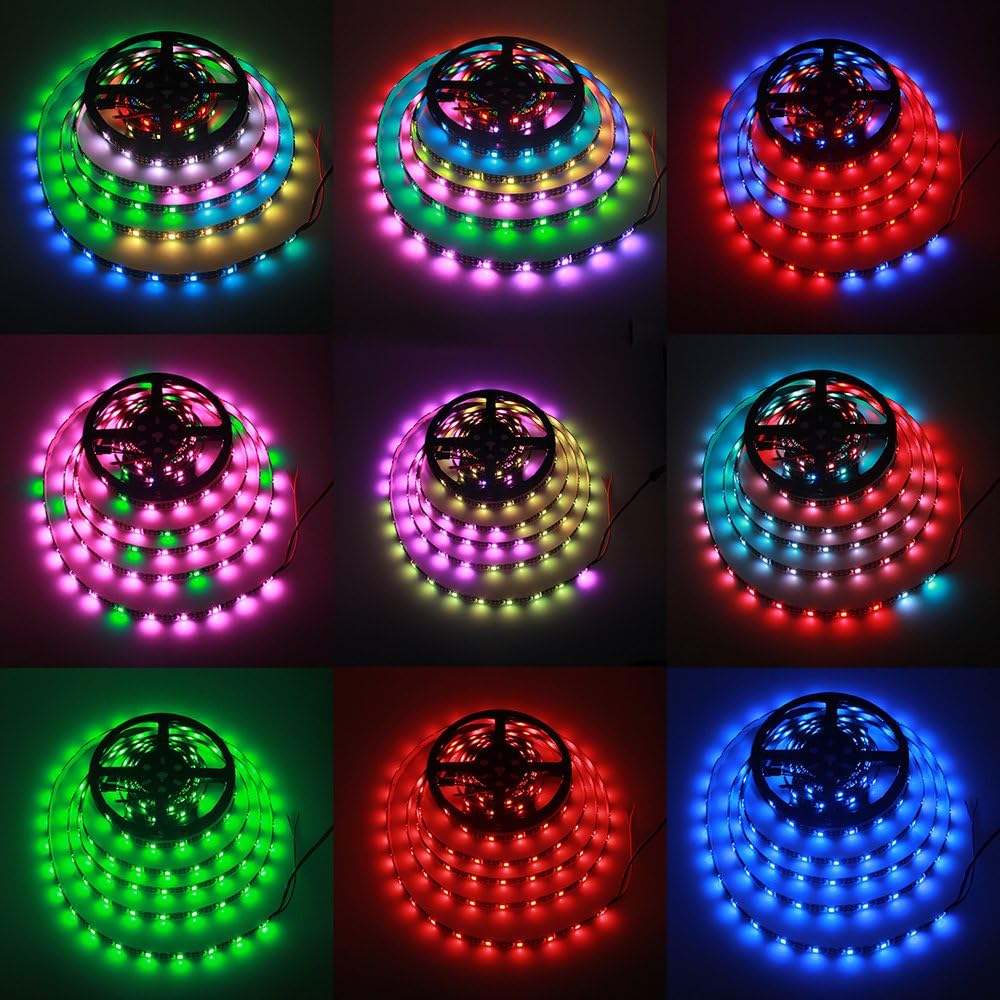

• 【Individually addressable LED】WS2812B RGB 5050 LED. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want. 256 gray levels adjustable and 24-bit color display.
• 【Support Many Controllers】Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP105E SP108E SP110E app controllers, SP106E SP107E music controllers, SP501E and MHCTRWF5V smart WiFi Controllers.
• 【Great for DIY】Each LED can be cut and welded freely along the cutting line to meet different length requirements. There are self-adhesive tape on its back, you can easily install it on any dry and flat surface. Flexible design, you can bend it to any shape you want.
• 【User-friendly Design】Designed with 3pin JST-SM connectors on both ends for easy hooking up. Separate power/ground wires on both ends for injecting power in case of voltage drop. Covered by silicone waterproof coating, which protects it very well and makes it easy to clean, up to IP65 waterproof.

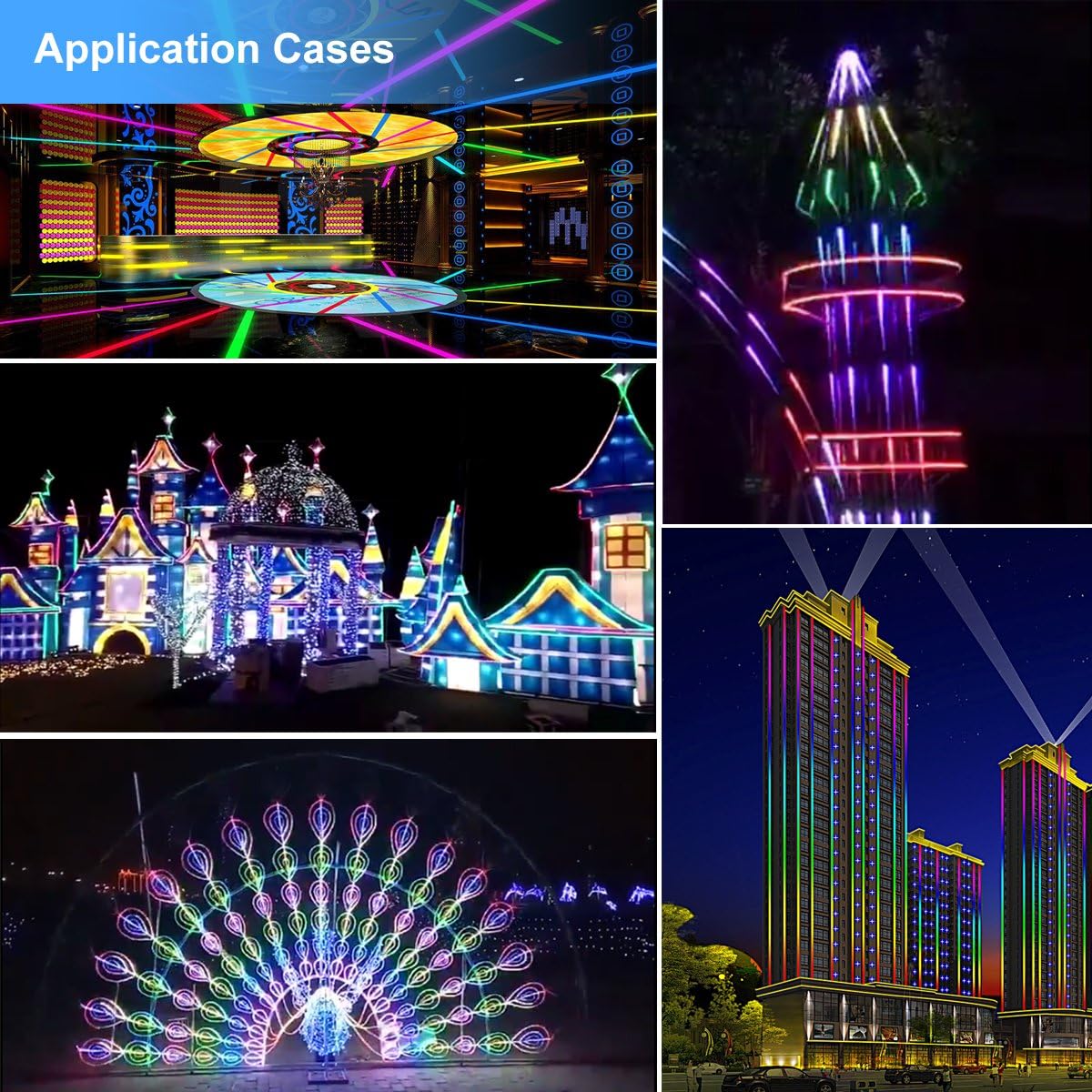

• 【Wide Application】 It can be used to make led screen, led wall, advertising board and widely applied to hotel, KTV, bars, Outdoor advertising signs, wedding party lighting, home and car decoration, city skyline, building outline and so on.

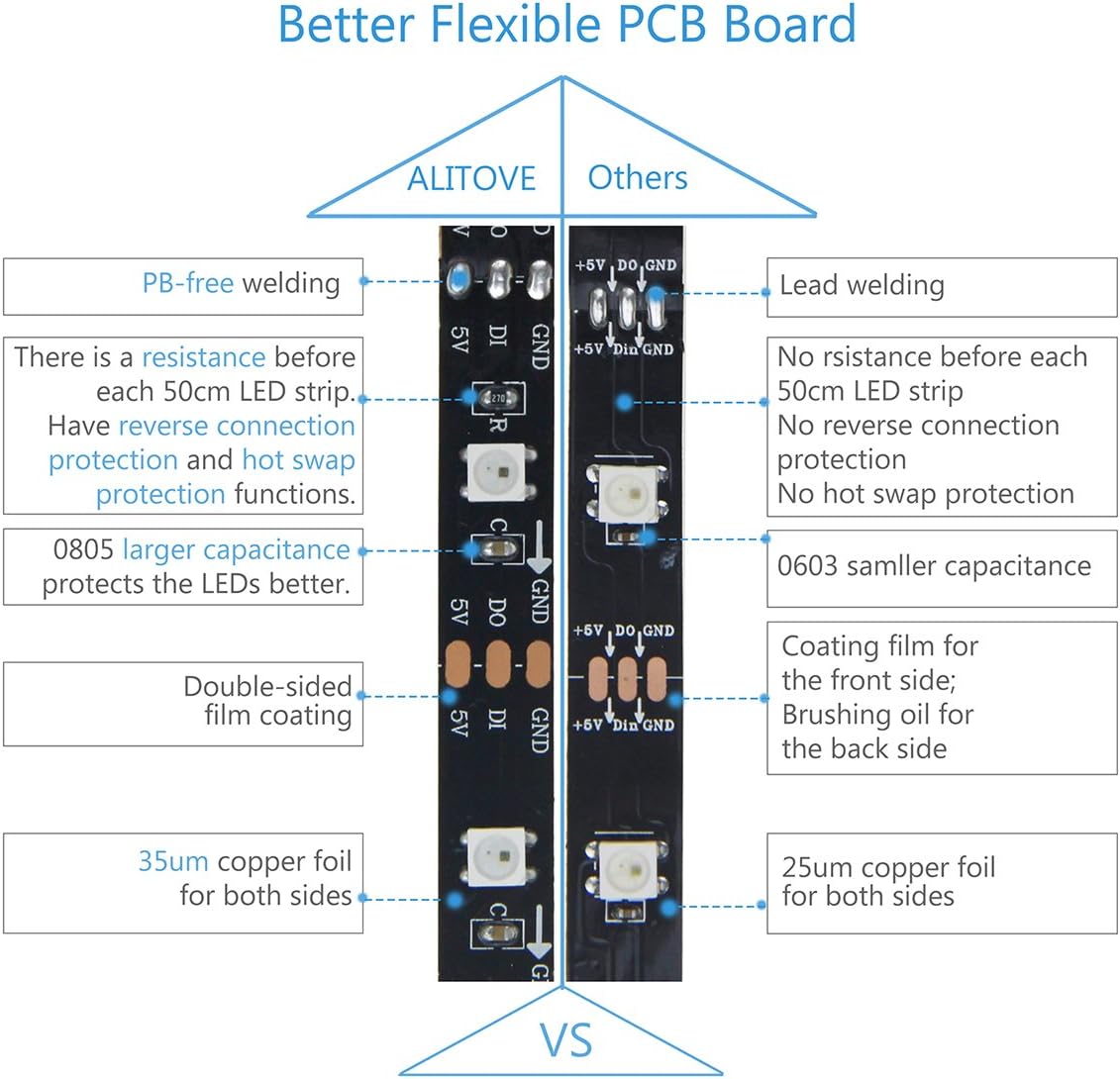

Cut and weld freely

Each LED is an independent and complete circuit cell. It can be cut and welded at the cutting line to meet your requirements.

Easy installation

It is designed with flexible FPCB plate and comes with self-adhesive tape on its back. You can gently bend and curve around surfaces and fix it with self-adhesive tape.

Chainable design

There are 3pin JST connectors on both ends. The LED strips can be hooked up one by one without soldering.

Waterproof IP65

Silicone waterproof coating covers the led strip. Waterproof grade reaches IP65. It can be used outdoor.
