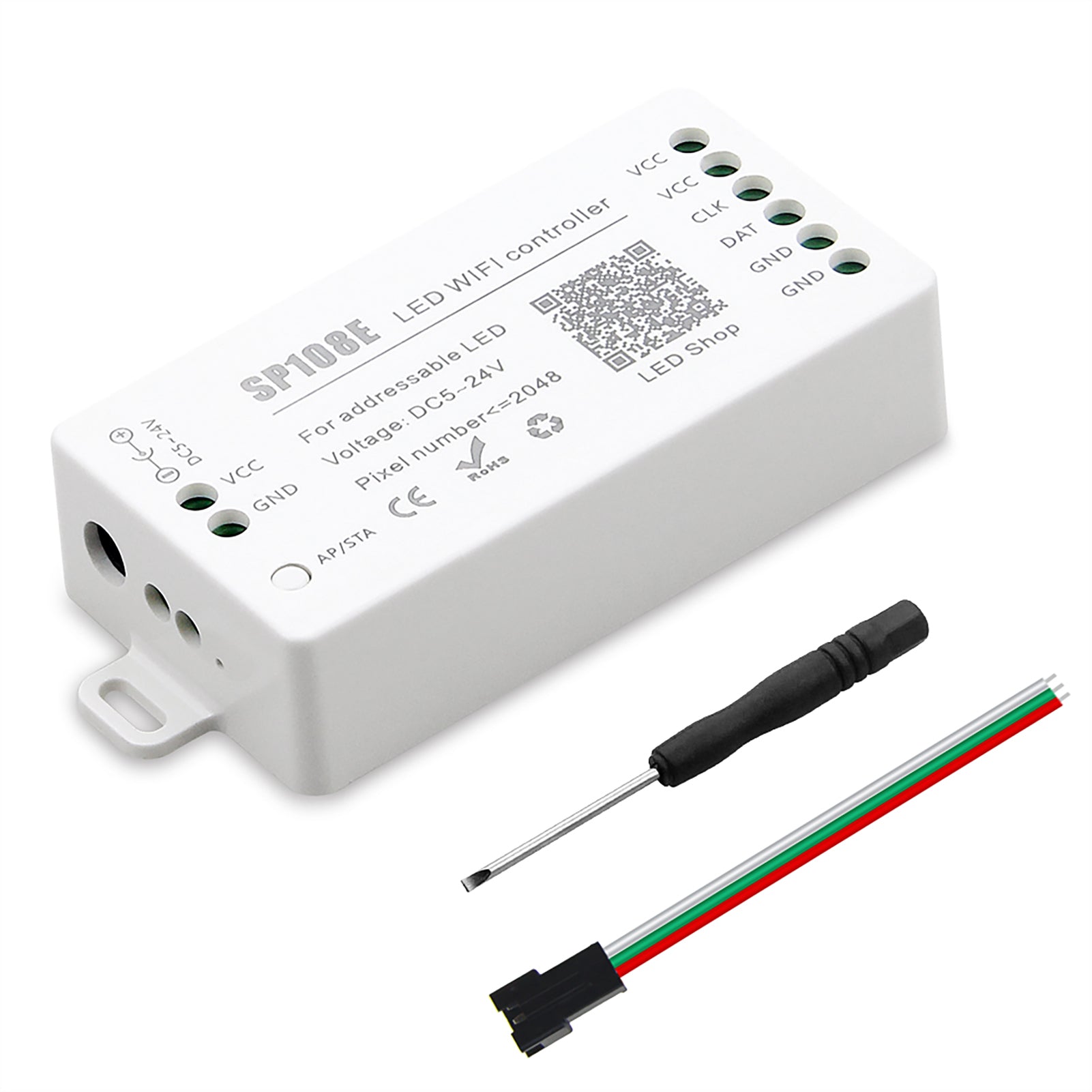

ALITOVE WiFi LED Controller - Compatible with WS2812B, WS2811, WS2801 LEDs. Wireless Control, DC 5V~24V

Precautions:

1. The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your led lights. If your lights need 5V input, please use a 5V power supply, never use 12V or 24V power supply.
2. It can only support 2.4Ghz WIFI, cannot support 5Ghz WIFI when it is used at STA mode (LAN connection mode) .
3. When connect to wifi network at STA mode (LAN connection mode) , the distance between the controller and the wifi router is within three meters. Once the controller is powered, please input wifi pin code within the 20 seconds.

Working Mode

A.AP(Access Point) mode:Controller and Phone connect directly, controller works as an access point.

1. Go to your phone Settings,find and connect the controller(named like SP108E_XXX, the default password is 12345678);

2. Open the LED Shop App ,then the controller will be showed on the device list;

B.STA(Station) mode: Controller and phone are in one same WiFi network, in this network, users can operate the controller smoothly.

There are two ways to configure the controller into the local WiFi network:

•SmartConfig Automatic Mode (This mode requires your phone has connected to a 2.4GHz WiFi)

1. Make sure your phone is connected to a WiFi network, pressing the Add Device button;

2. Input your WiFi password, pressing next step and select Automatic mode, long press the button of the controller until the LED indicator flash green; 3. Pressing the OK to confirm and wait for the configure processing finish;

4. After the configuration is finished, the LED indicator will turn into solid green, drag to refresh the device list, and the controller will be showed on the device list.

•Manual Configure Mode (This mode requires your phone has connected to a 2.4GHz WiFi or has connected to a 2.4GHz&5GHz combined WiFi netwok)

1. Make sure your phone is connected to a WiFi network, pressing the Add Device button;

2. Input your WiFi password, pressing next step and select Manual mode, click the button of the controller to switch the controller to AP mode(the LED indicator will turn into solid blue);

3. Go to your phone Settings,find and connect the controller(named like SP108E_XXX, the default password is 12345678);

4. Go back to the APP and pressing next step to start the configure processing; 5. After the configuration is finished, the LED indicator will turn into solid green, drag to refresh the device list, the controller will be showed on the device list.

Removing device: User can select the controller and remove it out of the network by pressing the Remove Device button on the APP, or just click the button of the controller to switch the controller into AP mode.


How to set up the controller?

The first method to connect the controller. Search "LED Shop" in app store or scan the QR code on the box. Install the app on your smartphone or Tablet. The first method to connect the controller.Controller works as an access point. Open wifi setting page of your cellphone, find and connect the controller (named like SP108E_xxx, the default pin code is 12345678).	The second method to connect the controller. Turn off the power of controller. Wait for 1 minutes. Connect your phone to your wifi network, open LED Shop APP. When the controller is not connected to any WIFI network, power on the controller, controller will be remain in Wait-For-Connect mode for 20 seconds; Within the 20 seconds, press the Add Device button, input the WIFI pin code, press the OK to confirm. Then wait for the configure processing finished; When controller successfully enter the WIFI network, it will be showed on the device list. ( Choose one of the two connection methods)
	Set R/G/B sequence, make it synchronizes with your lamp. Choose the IC type, make it same with your lamp Set pixels number of each section. Set number of sections. The total pixels should be not more than 2048.

Product Feature

• 【WiFi Remote Control.】Long distance IOS and Android App remote control via WiFi, IOS 10.0 or Android 4.4 or later edition required. Support routing connection mode (AP) and LAN connection mode (STA). Can't support 5Ghz WIFI

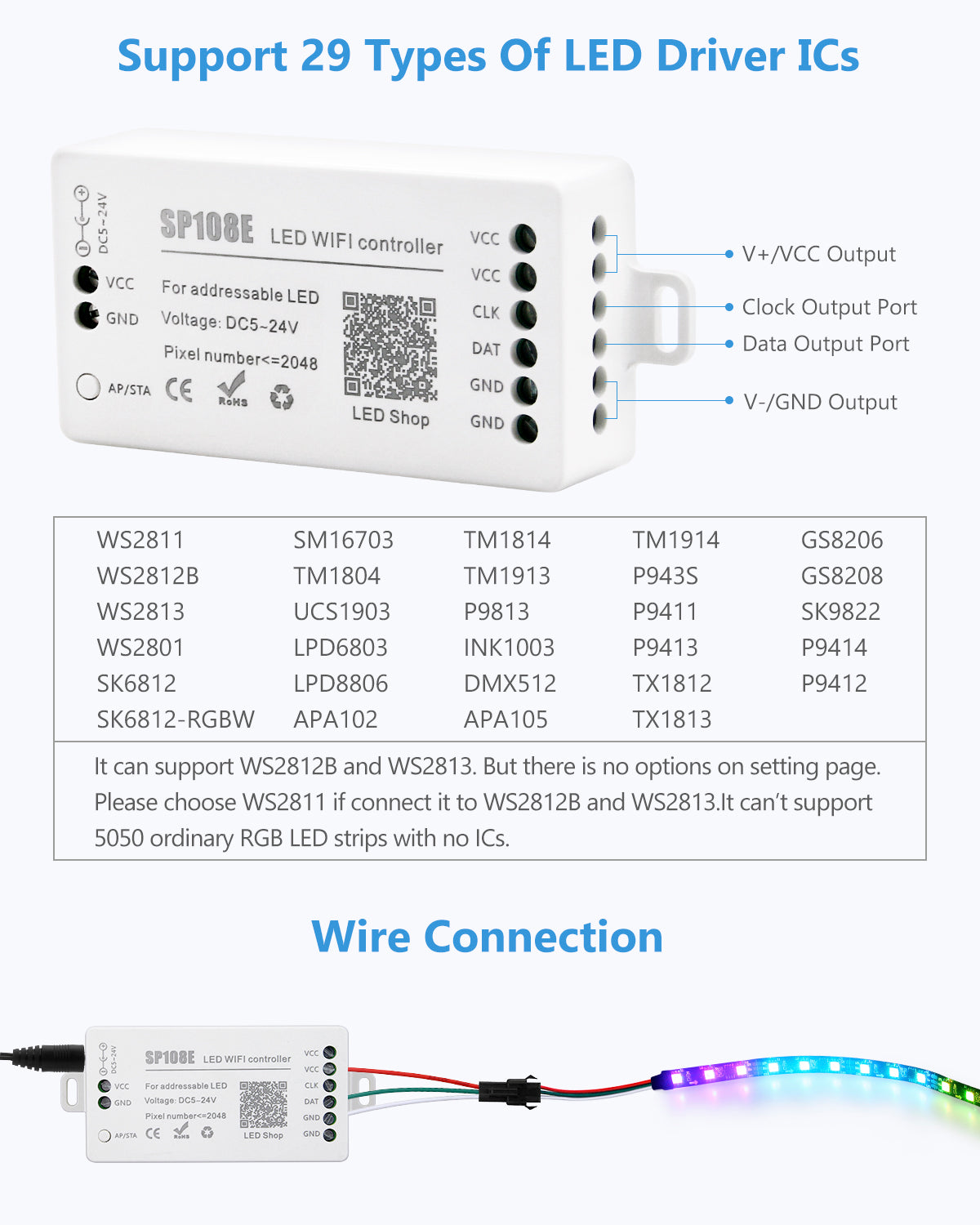

• 【Wide Compatibility】 Support almost all the one-wire or two-wire LED driver ICs, such as WS2811,WS2812B, WS2801, SK6812, SK6812-RGBW, WS2813, LPD6803, LPD8806, APA102, TM1913, UCS1903, SM16703, DMX512.

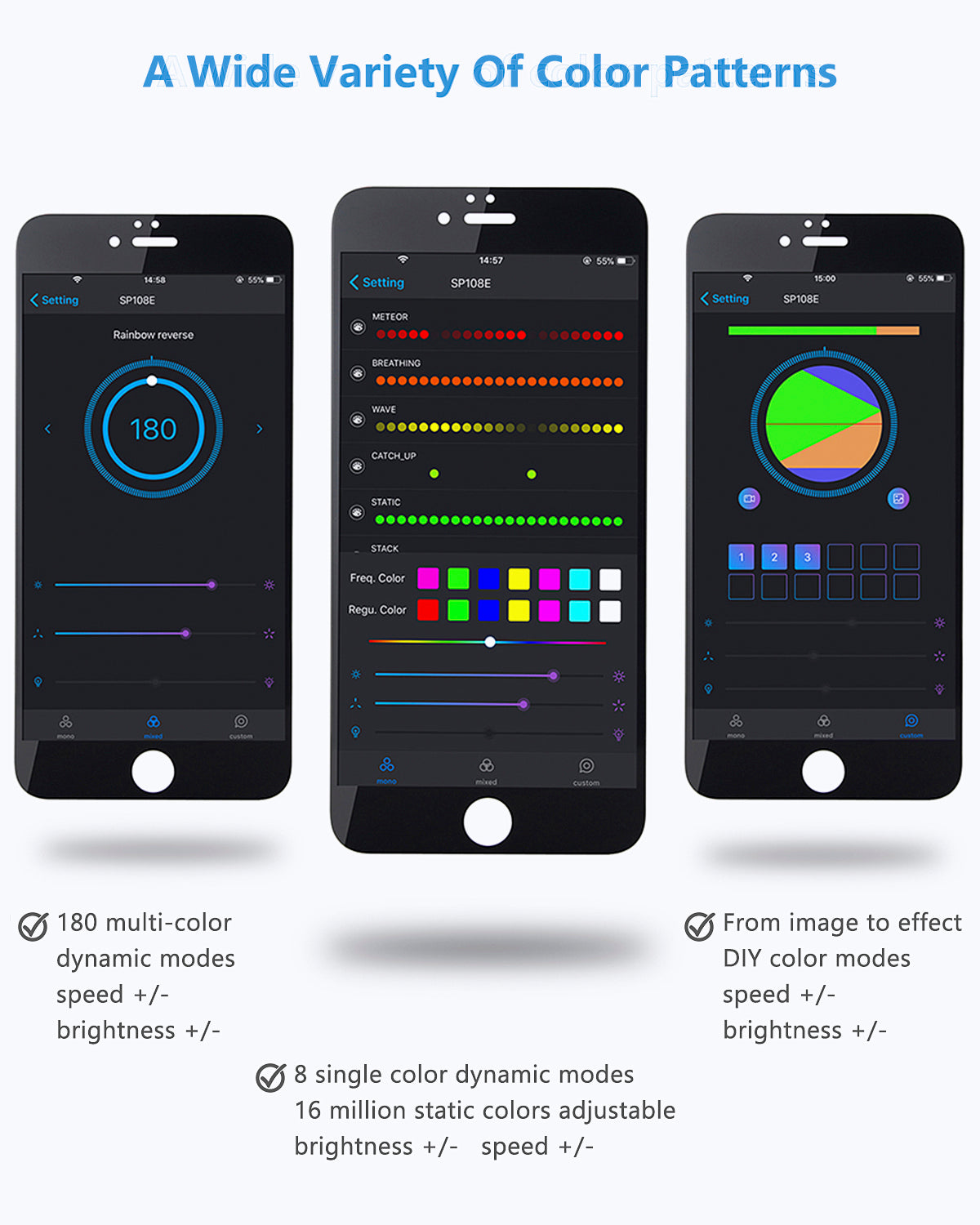

• 【Rich Color Modes】 180 kinds of multi-color dynamic modes, 8 kinds of single color modes such as meteor, breathing, wave, catch-up, stack, flash, flow, static. Color, brightness and speed are adjustable.
• 【Capture image’s color you like】The WiFi controller features creative from-image-to-effect function. It can capture the color of image, create distinctive color effect and synchronize light color with atmosphere of your room.
• 【User-friendly design】 Support setting pixels number and segments number, control up to 2048 pixels in total. Save user setting when power off. DC 5V~24V wide working voltage; reverse connection protection; hot swap protection
