Parameter

• Light source: 5050 RGB LED; 30 LEDs per meter; 150 LEDs per roll
• IC Model: WS2811 IC; 10pcs per meter; 50pcs per roll
• RGB order:BRG
• Color Display: 24-bit full color
• Working Power: 3A max @12V DC ; 36W per roll
• Port scanning frequency reaches to 2KHz/s
• Data transmitting speed is up to 800Kbps
• Waterproof: IP65 Waterproof
• FPCB board color: Black
• Dimension: (L) 5000mm*(W)10mm* (T)3mm

What you will get:

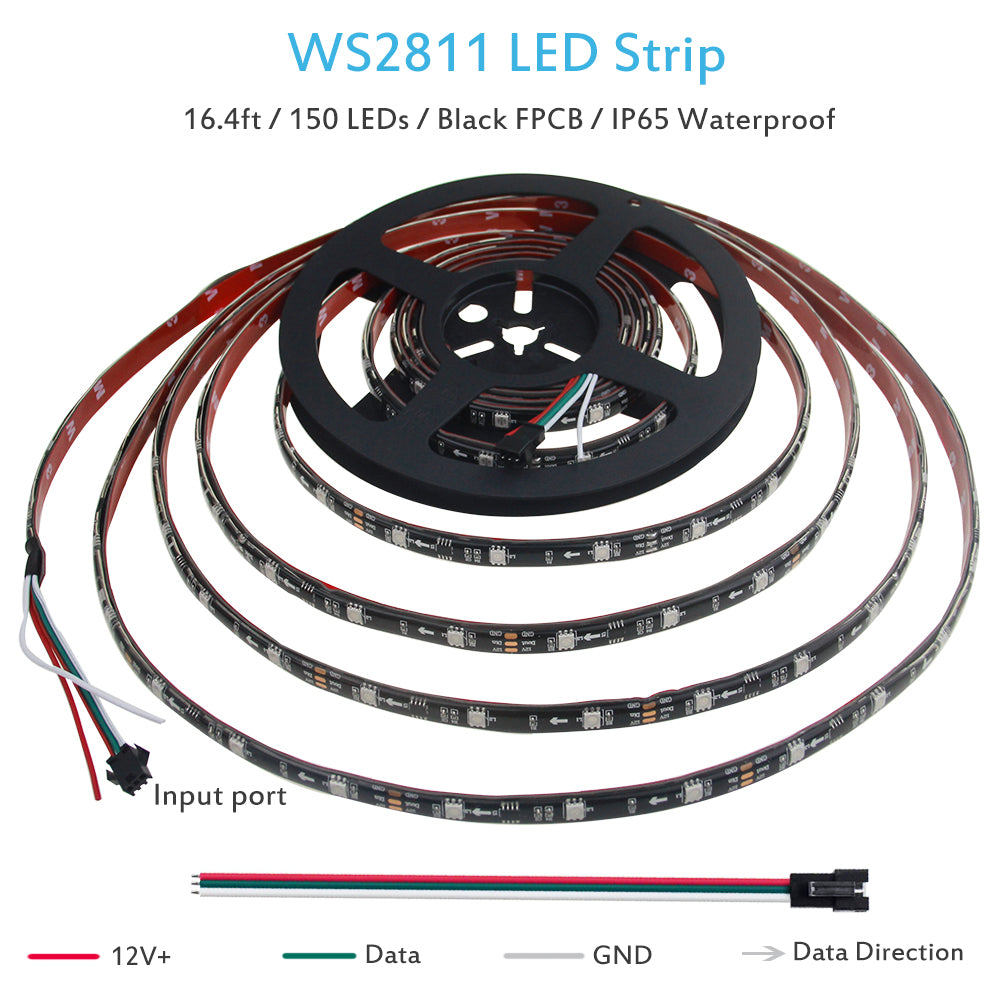

• 1 x 5M/16.4ft WS2811 LED strip light
• 1x 3pin JST connector

• 【WS2811 Addressable LED Strip】5M long with 150 pcs 5050 RGB LEDs and 50 pcs WS2811 ICs which are organized in groups of 3 LEDs with 1 IC. Each group can be controlled individually. It will display much more amazing Static and dynamic color effects than regular RGB strip lights.

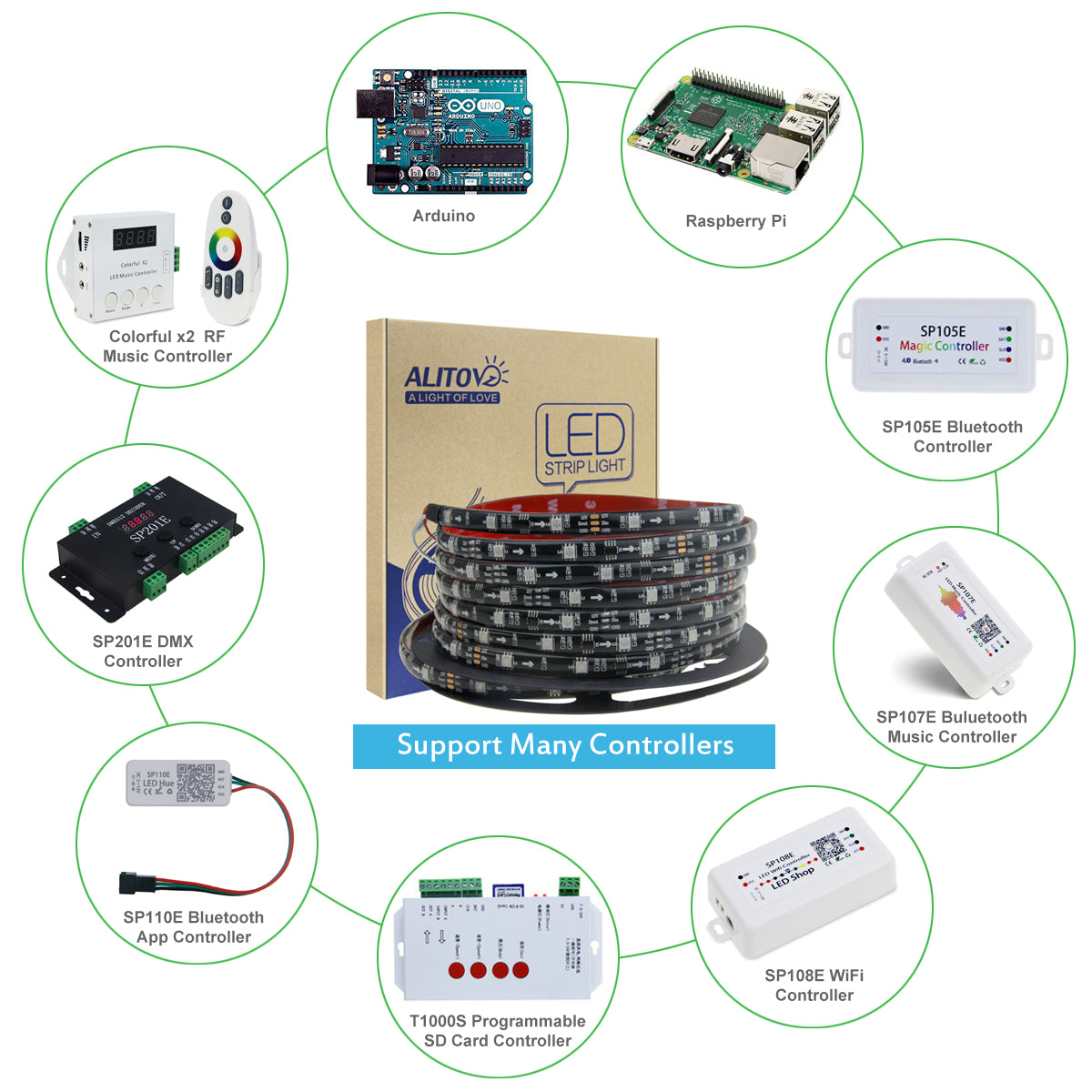

• 【Support Many Controllers】It is compatible with Arduino, Raspberry Pi,T1000S,K1000C etc programmable controllers. Support SP105E SP108E SP110E app controllers, SP106E SP107E music controllers, SP501E and MHCTRWF5V smart WiFi Controllers. app controllers, SP106E SP107E music controllers, SP501E and MHCTRWF5V smart WiFi Controllers. (Controller is not included)
• 【User-friendly Design】Designed with 3pin JST-SM connectors on both ends for hooking up. Separate power/ground wires on both ends for injecting power. Covered by silicone coating, waterproof IP65. Each group can be cut and welded freely along the cutting line to meet different length requirements.
• 【3M VHB Heavy-duty Foam Tape】Based on buyers’ feedback on adhesive issue, we upgraded the tape to 3M VHB heavy duty foam mounting tape. It is much more sticky and durable than hot-melt tapes which is widely used by other brands' LED Strips.
• 【Wide Application】 It can be used to make led screen, led wall, advertising board and widely applied to hotel, KTV, bars, Outdoor advertising signs, wedding party lighting, home and car decoration, city skyline, building outline and so on.

Programmable LED Strip Light

Built in WS2811 smart driver ICs which can be programmed with Arduino,Raspberry Pi, Fadecandy, T1000S, etc. You can set them to any color or animation you want.

One IC Controls Three LEDs

LEDs and ICs are organized in groups of 3 LEDs with 1 IC. 1 IC controls 3 LEDs. Each group can be controlled individually, cut and welded at the cutting line to meet your requirements for length

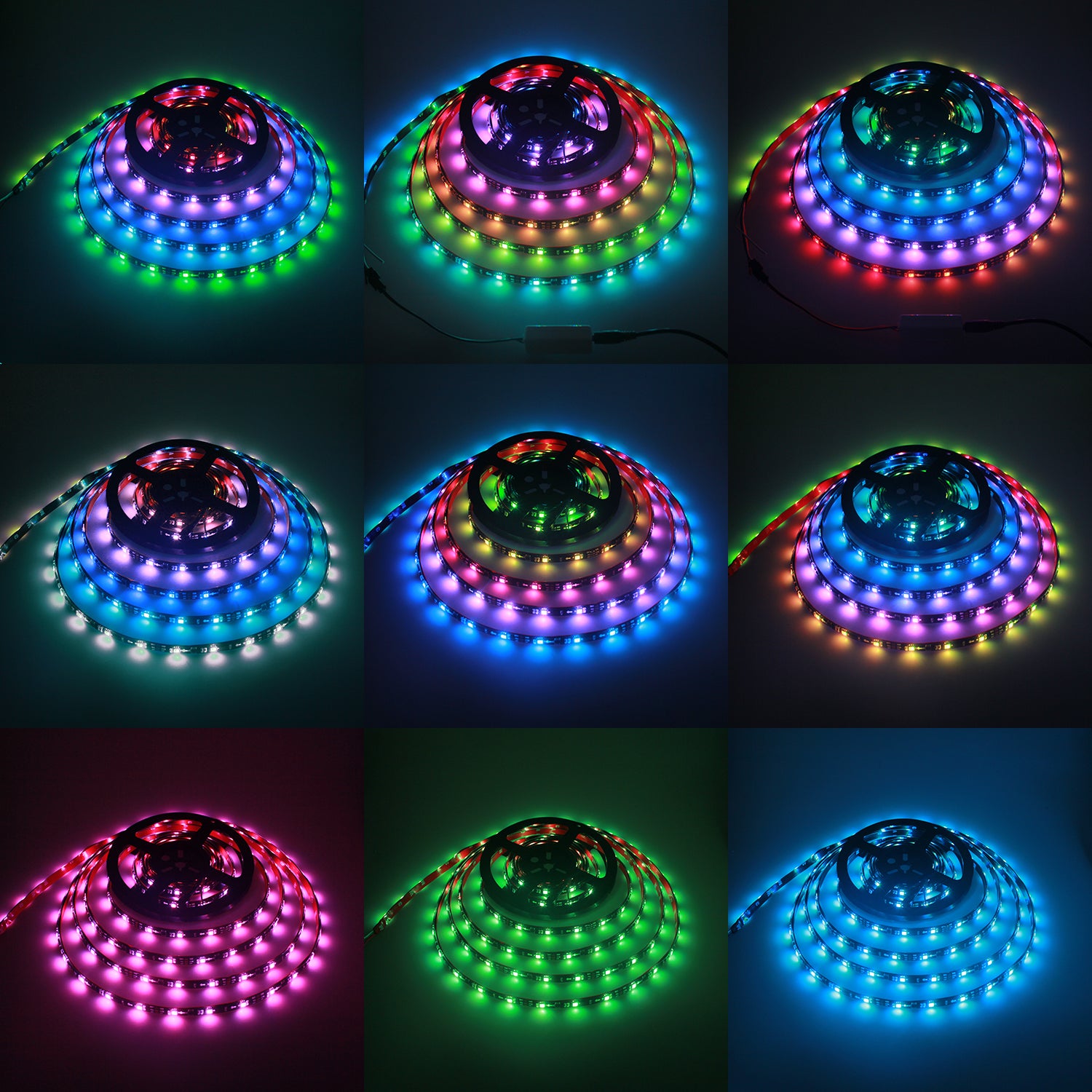

Static & Dynamic Dream Color Display

With compatible controllers, it will display much more amazing color effects than regular rgb strips, such as rainbow, flash, fading, chasing, breath, wave, raindrop, stacking, curtain-up,etc

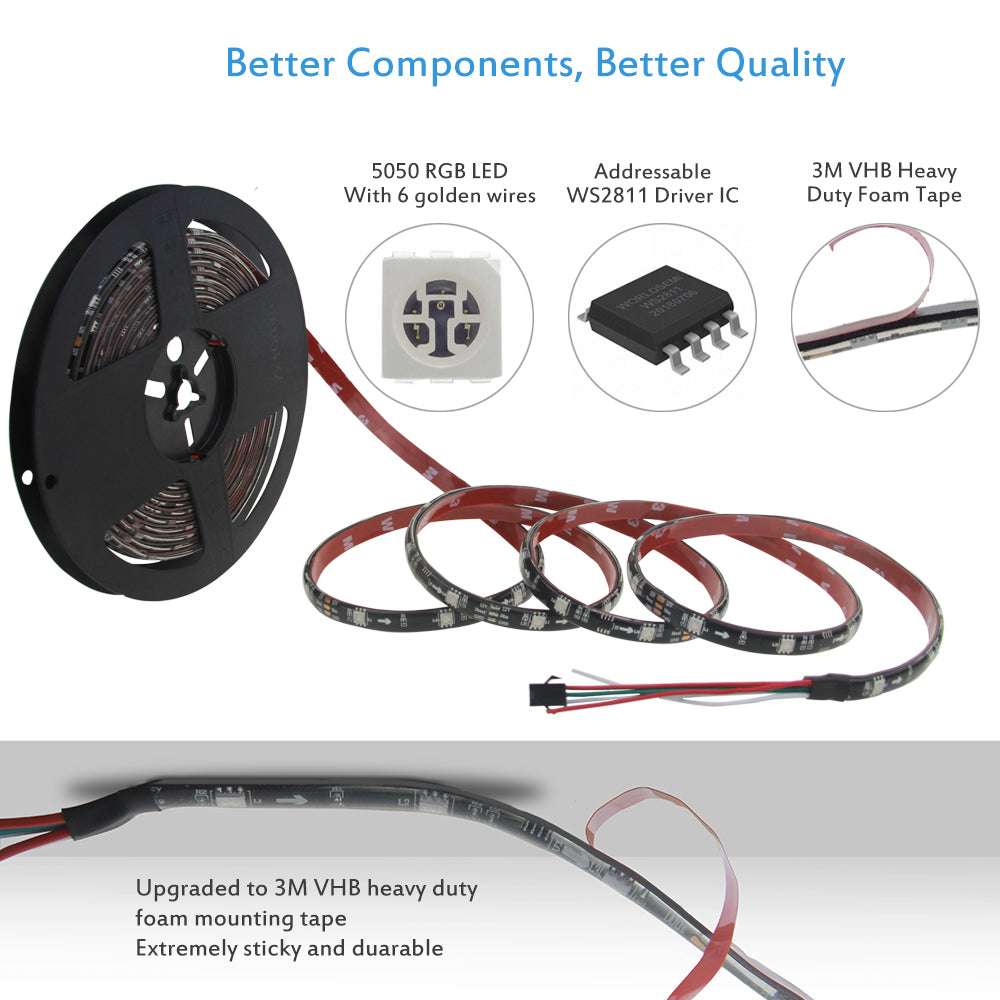

3M VHB Heavy Duty Tape

Based on buyers’ feedback on adhesive issue, we upgraded the tape to 3M VHB foam heavy duty mounting tape which is much more sticky than the tapes used by other brands' LED Strips

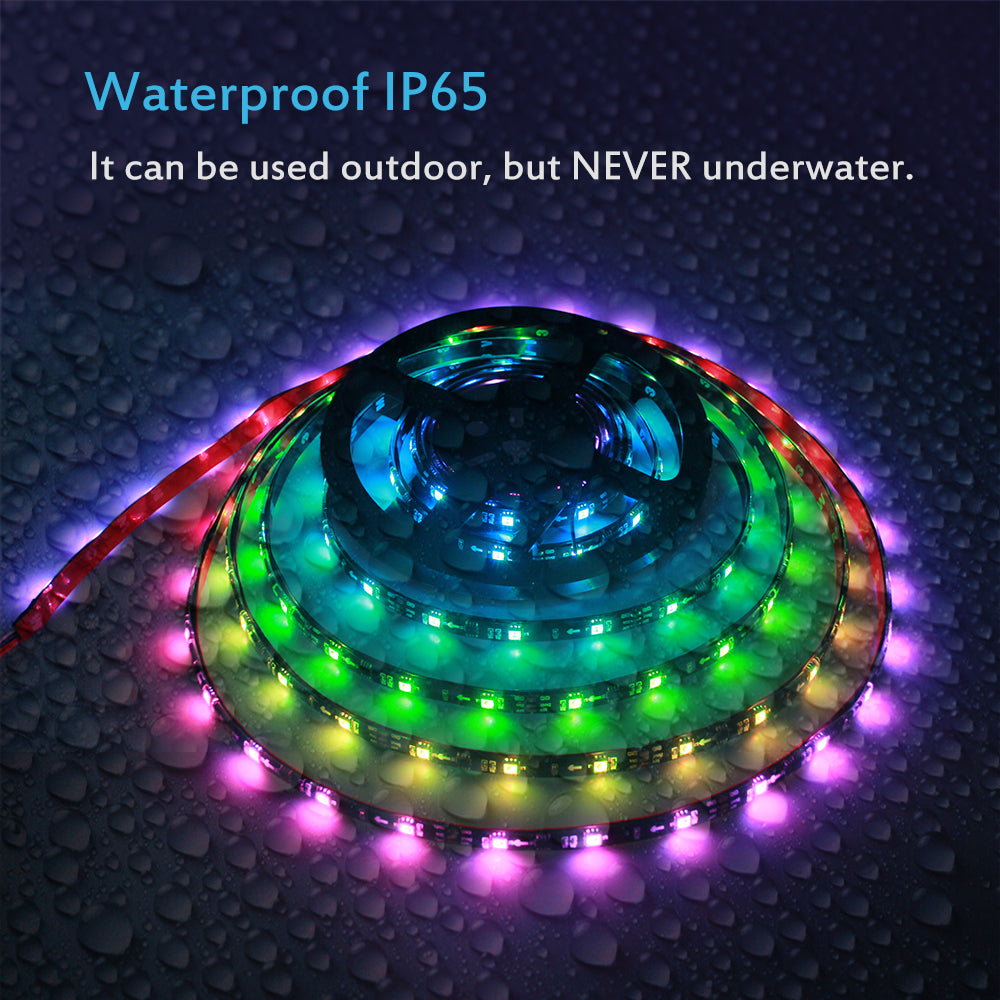

Waterproof IP65

It is covered by silicone coating, which protects it very well and makes it easy to clean. Waterproof grade is up to IP65. Great for both indoor and outdoor lighting project

Extensible Design

Designed with 3pin JST-SM connectors and separate power/ground wires on both ends.You can hook up multiple led strips together and inject power in the middle in case of voltage drop
