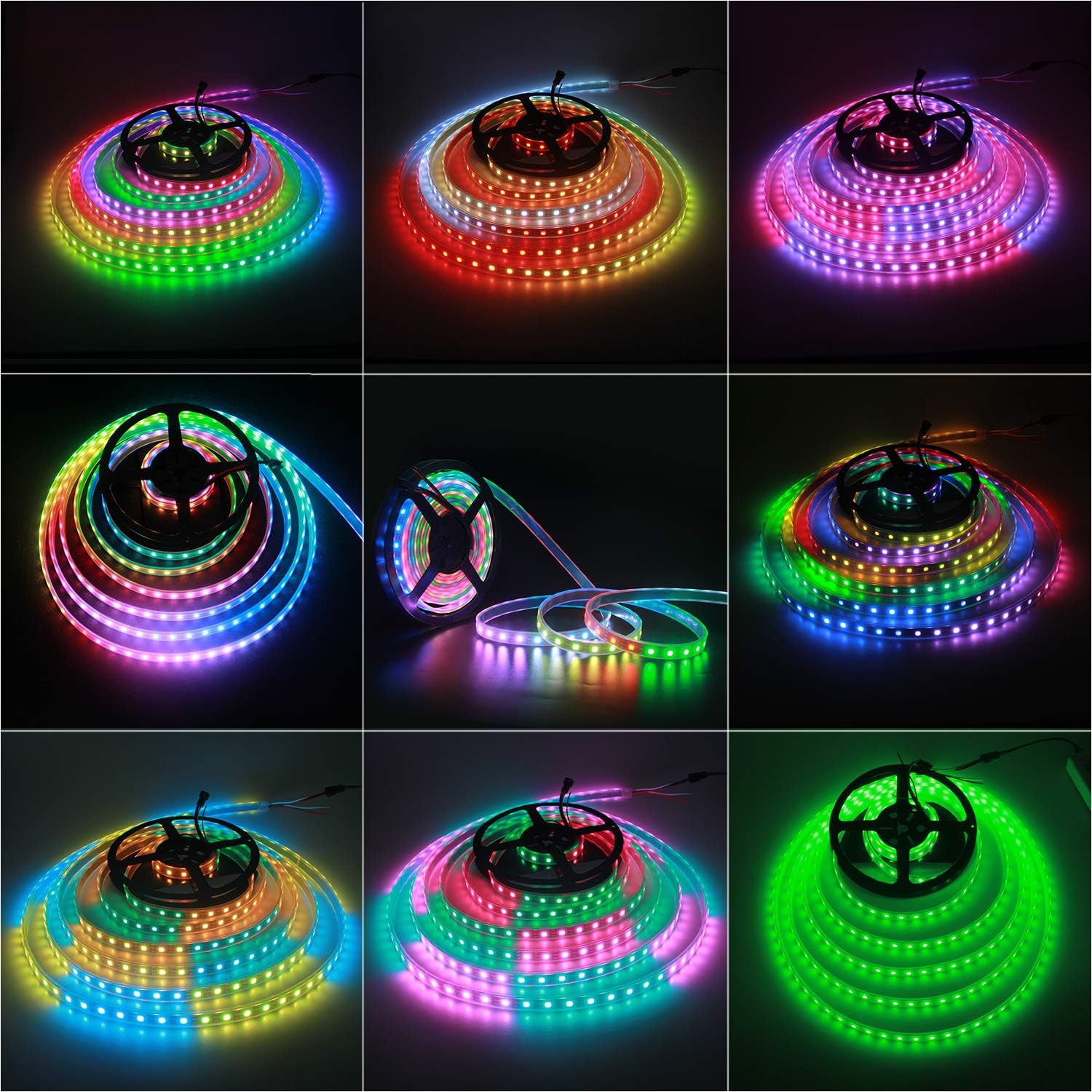

ALITOVE WS2812B Individually Addressable LED Strip Light 5050 RGB 16.4ft 300 LED Pixel Flexible Lamp Tube Waterproof IP67 Black PCB DC 5V

Parameter:

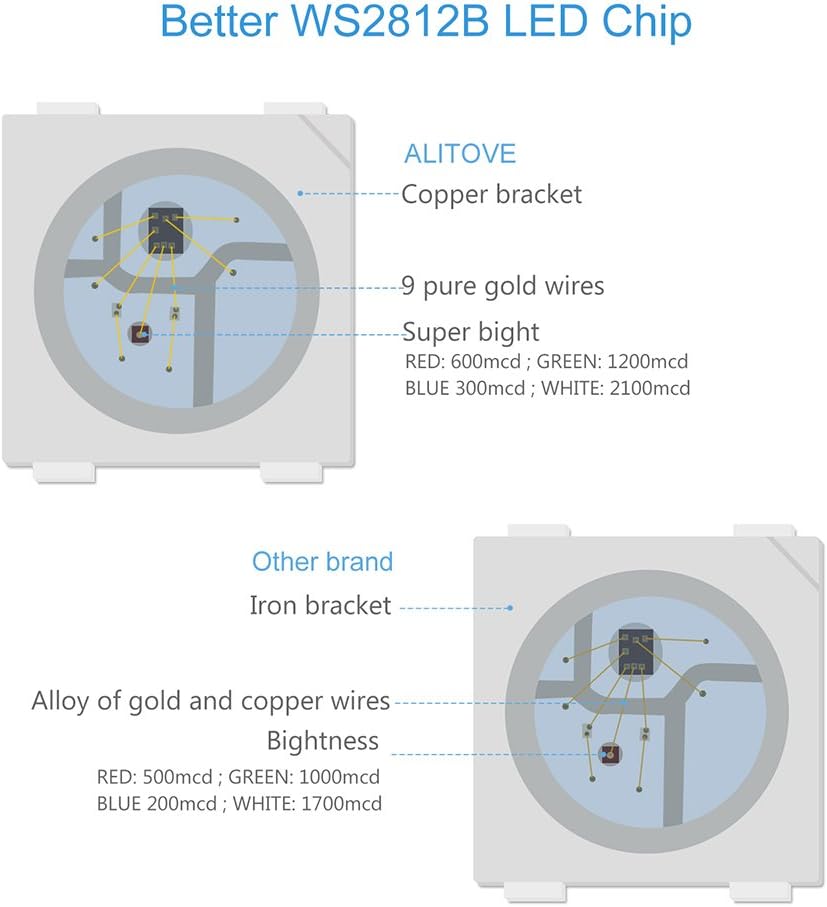

• Light source: 5050 RGB LED with built-in WS2812B driver IC

• LED Qty: 60 LED/M, 300 LED/Roll
• Wave length: R,620~625nm ; G,515~525nm; B,465~475nm ; 24 bit full color ; 256 gray levels ;
• Working voltage & power: DC 5V; 0.2W/LED; 12W/M; 60W/Roll
• Waterproof level: Waterproof IP67
• Dimension: (L)5000mm * (W)12mm * (H)4mm; 16.4ft/5m per roll
• Port scanning frequency reaches to 2KHz/s ; Data transmitting speed is up to 800Kbps
• RGB order: GRB (Not RGB) ( Please set up the controller before you use it. )

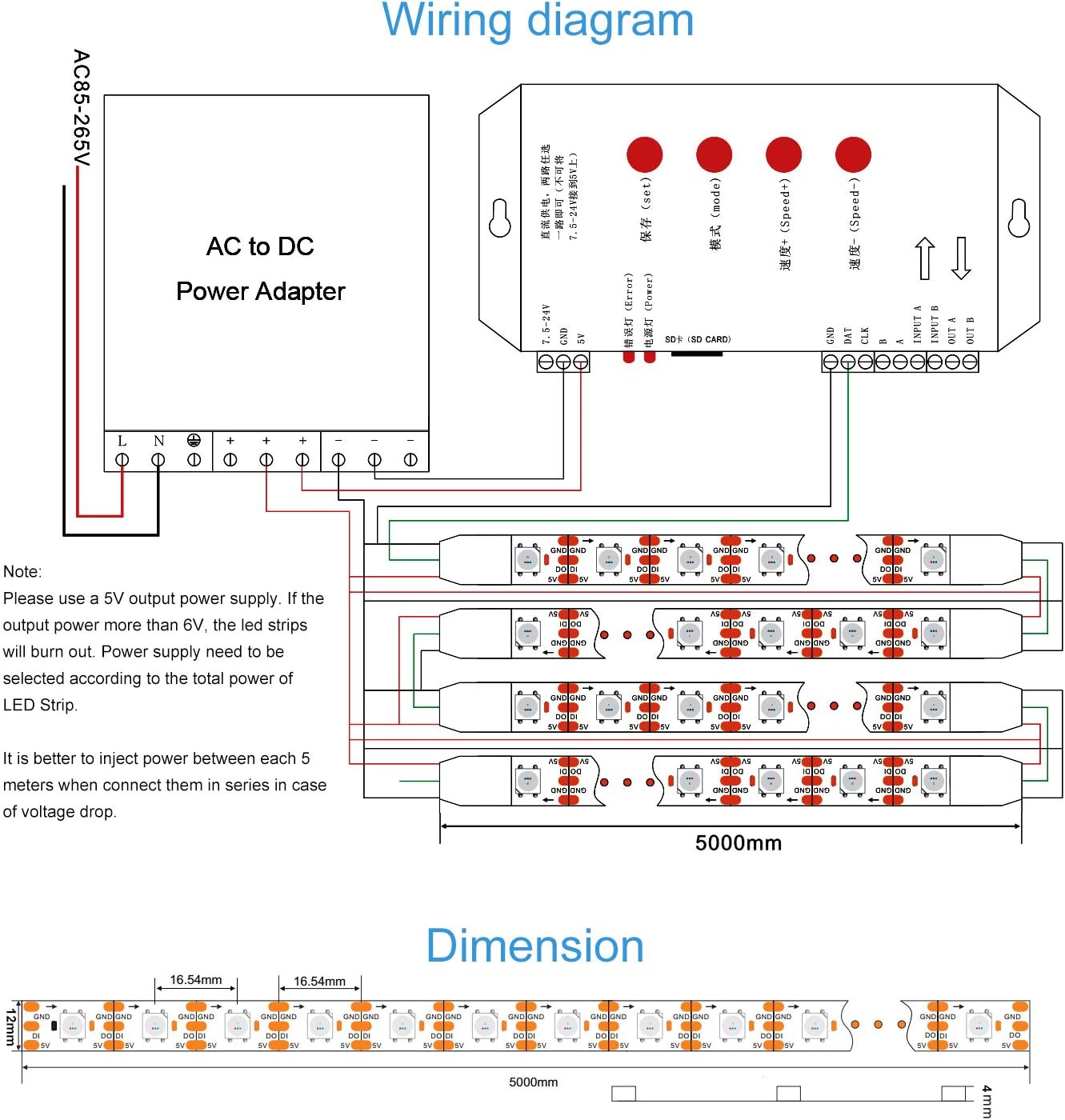

• Wire instruction: Red wire: 5V+ ; Black Wire: GDN ; Green wire: Data
• Life span:≥50000hrs; FPCB color: Black
• We can customize the LED strips according to your requirements.

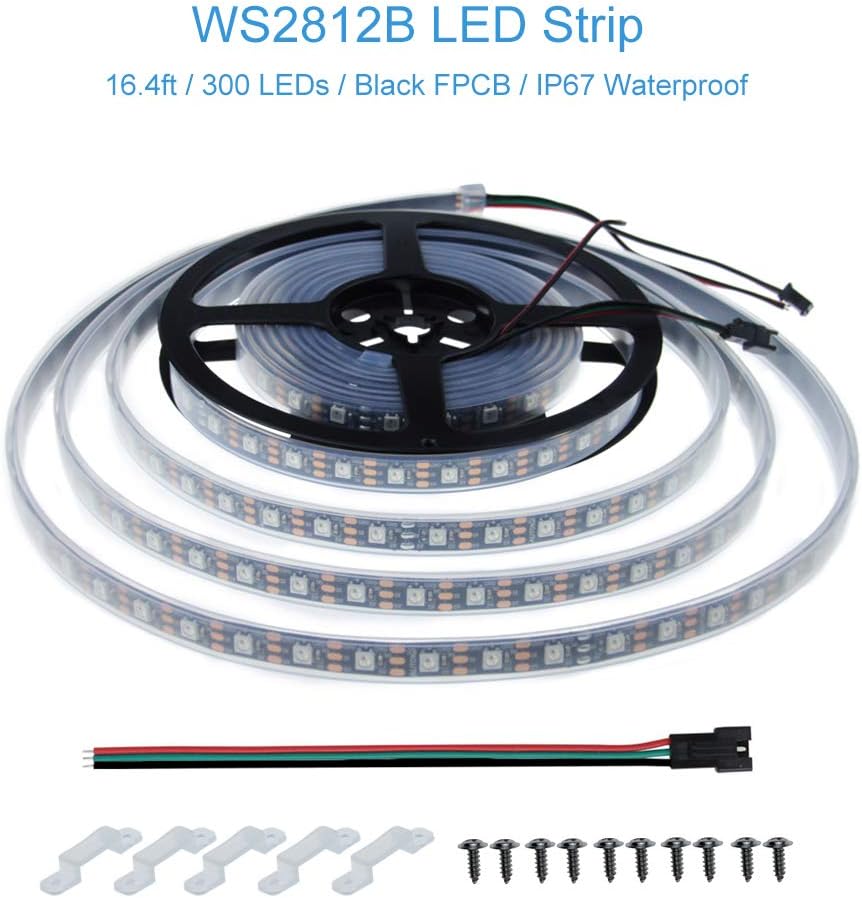

What you will get:

• 1x 16.4ft/5m 300 pixels Black PCB WS2812B led strip (Power supply and controller are not included)

• 1x Male 3PIN JST connector
• 5x silicone clips; 10x mini screws

• 256 brightness display and 24-bit color display. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want.
• It can be programmed with Arduino, FastLED library, Raspberry Pi, Fadecandy, T1000S etc. It can also be controlled by SP105E, SP103E, HC008 and other pre-programmed WS2811 controllers.
• Covered with silicone weatherproof sheathing, which protects it very well and makes it easy to clean. It comes with clips and screws and can be installed easily.
• Come with 3pin JST-SM connectors and separated power/ground wires on both ends. Each LED can be cut off without damaging the rest strip. You can shorten, lengthen or bend it freely if you want.

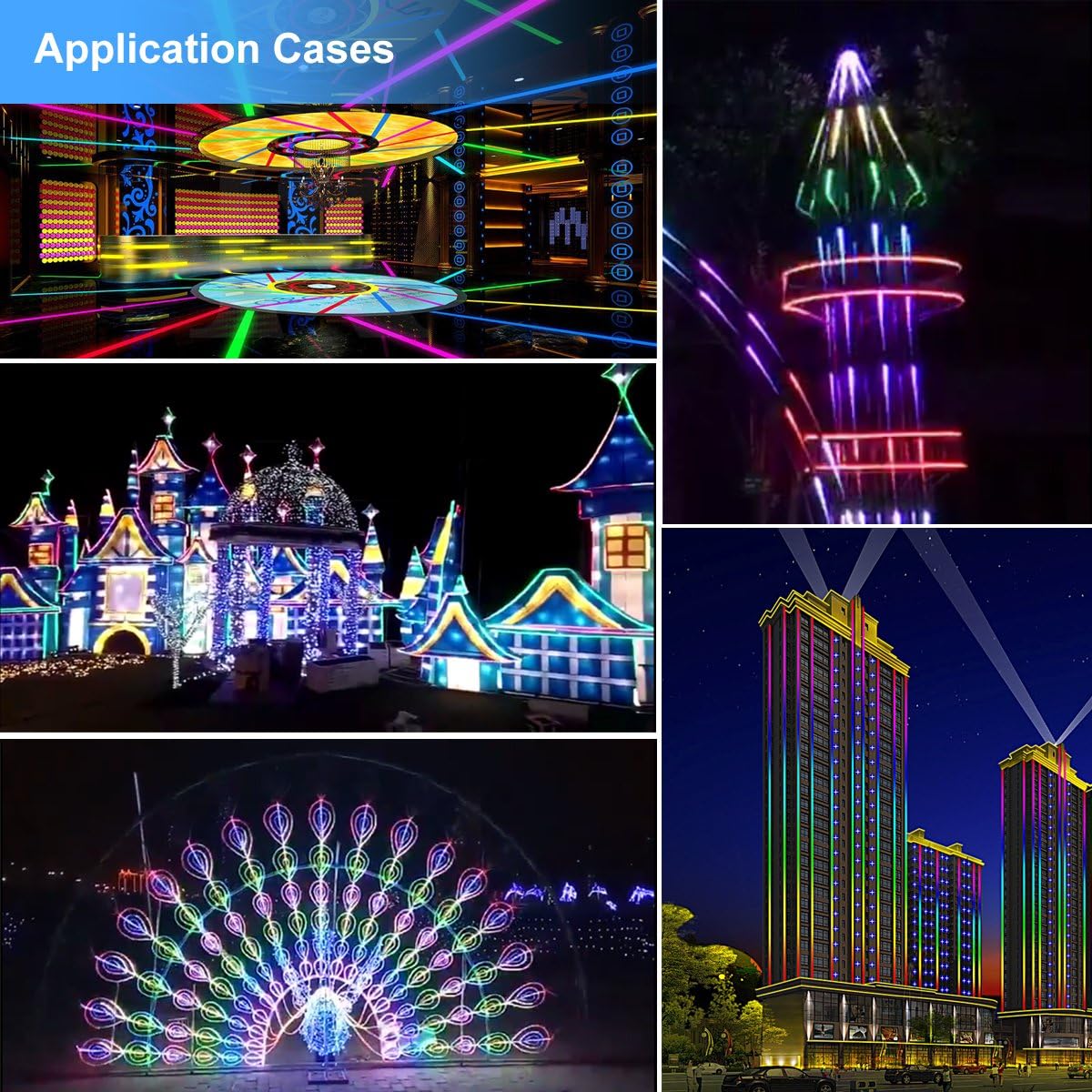

• Used to make led screen, led wall, advertising board and widely applied to hotel, KTV, bars, Outdoor advertising signs, Christmas or wedding party decoration, and so on.

Cut and weld freely

Each LED is an independent and complete circuit cell. It can be cut and welded at the cutting line to meet your requirements.

Flexible design

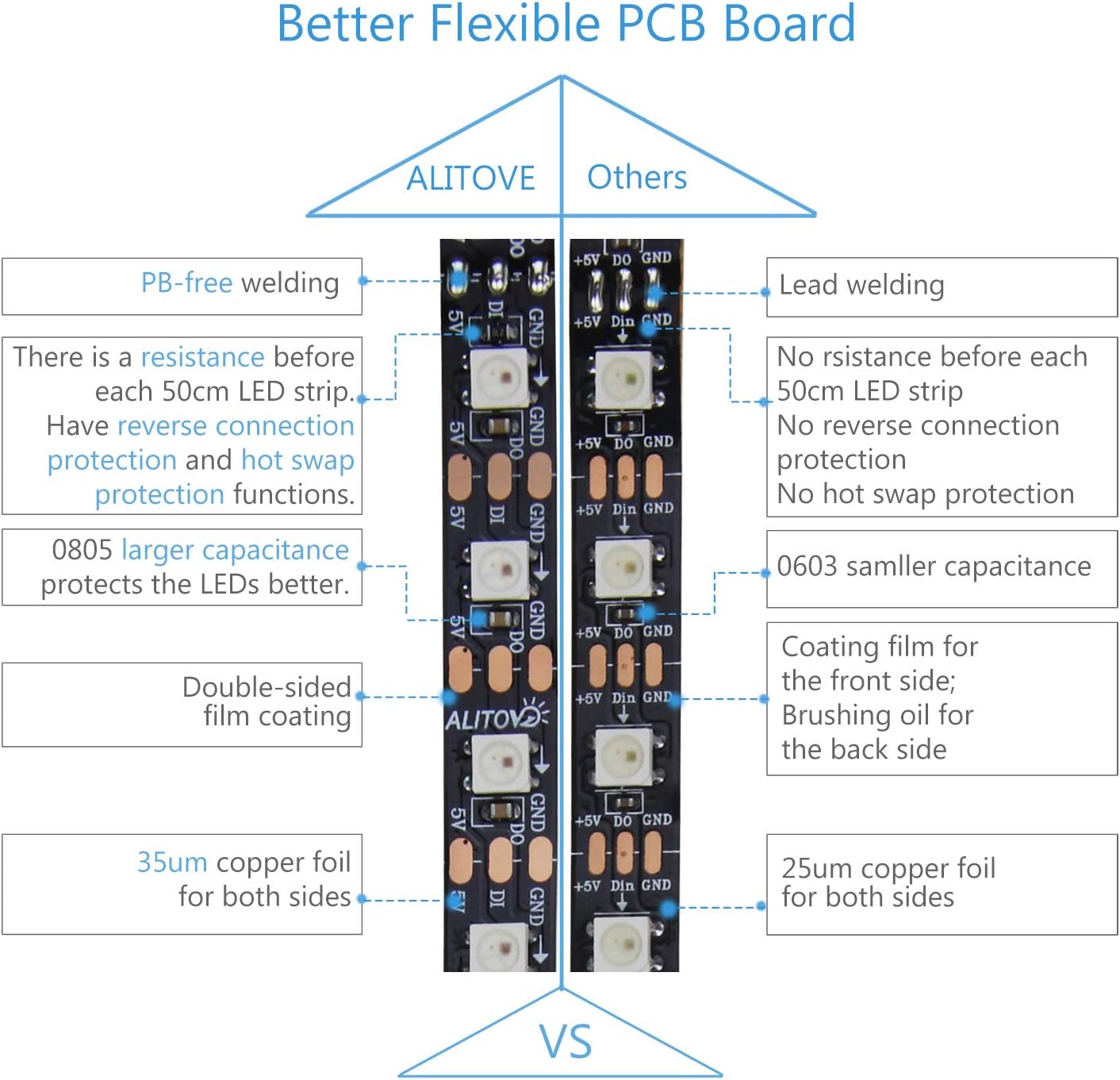

The flexible FPCB plate is used as the substrate. So WS2812B LED strip can be gently bent and curved around surfaces.

Extendable design

There are 3pin JST connectors on both ends. The LED strips can be hooked up one by one without soldering.

Waterproof IP67

Silicone waterproof sheathing covers the led strip. Waterproof grade reaches IP67. It can be used outdoor.
