ALITOVE WS2815 WS2813 12V Addressable RGB LED Strip - 5m, 150 LEDs, Dream Color Programmable, Waterproof IP65, White FPCB

Parameter:

• Model: WS2815WH150EWP

• Light source: 5050 RGB LED
• LED Qty: 30pcs per meter
• Wave length (NM): R,620~625nm ; G,515~525nm; B,465~475nm
• The gray level: 256
• Color: full color (24-bit )
• View angle:120°
• Voltage: DC 12V (Please NEVER use higher than 12V or you will destroy the entire strip.)
• Power: 7.2 W/M
• Waterproof: Waterproof IP65
• Dimension: 5000*10*4mm
• Package: 16.4ft/roll
• Life span:≥50000hrs
• FPCB color: White
• Working environment: -40℃to +80℃

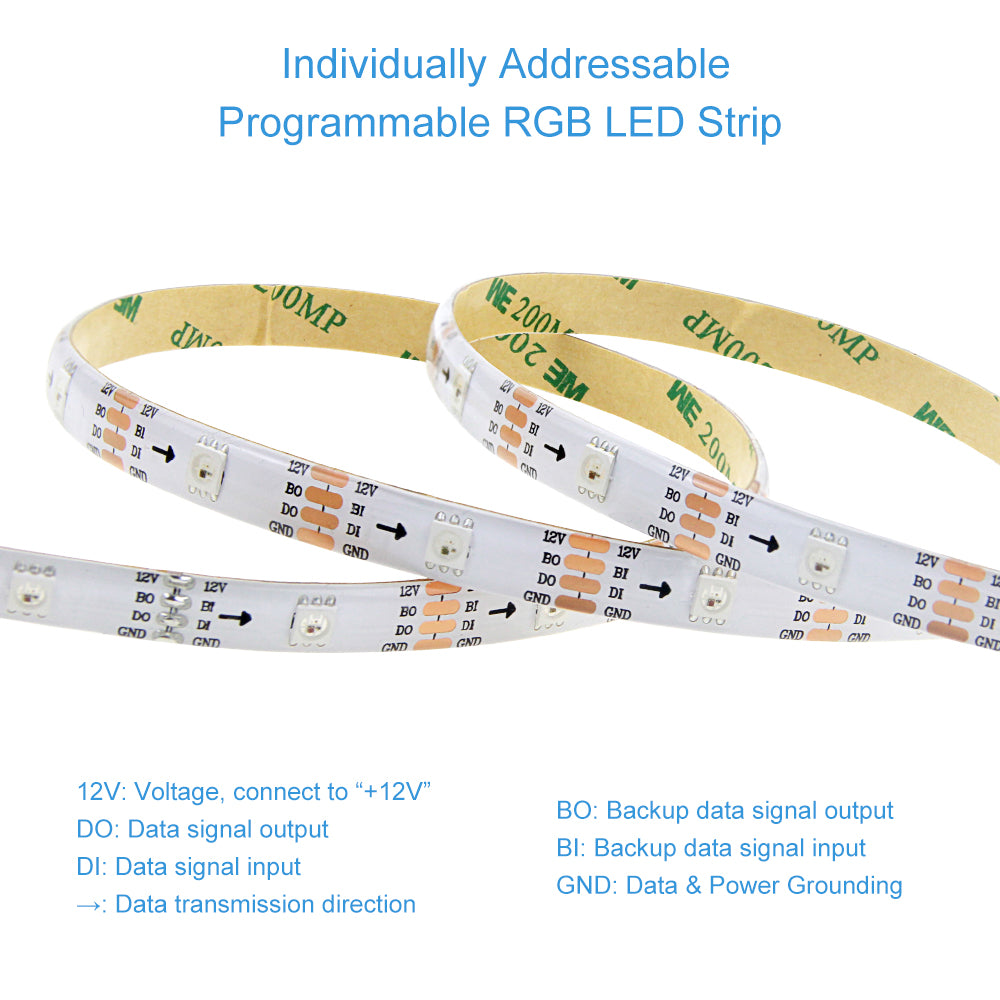

• Red wire: 12V+ / Black Wire: GDN / Yellow wire: Data / Green wire: Backup Data

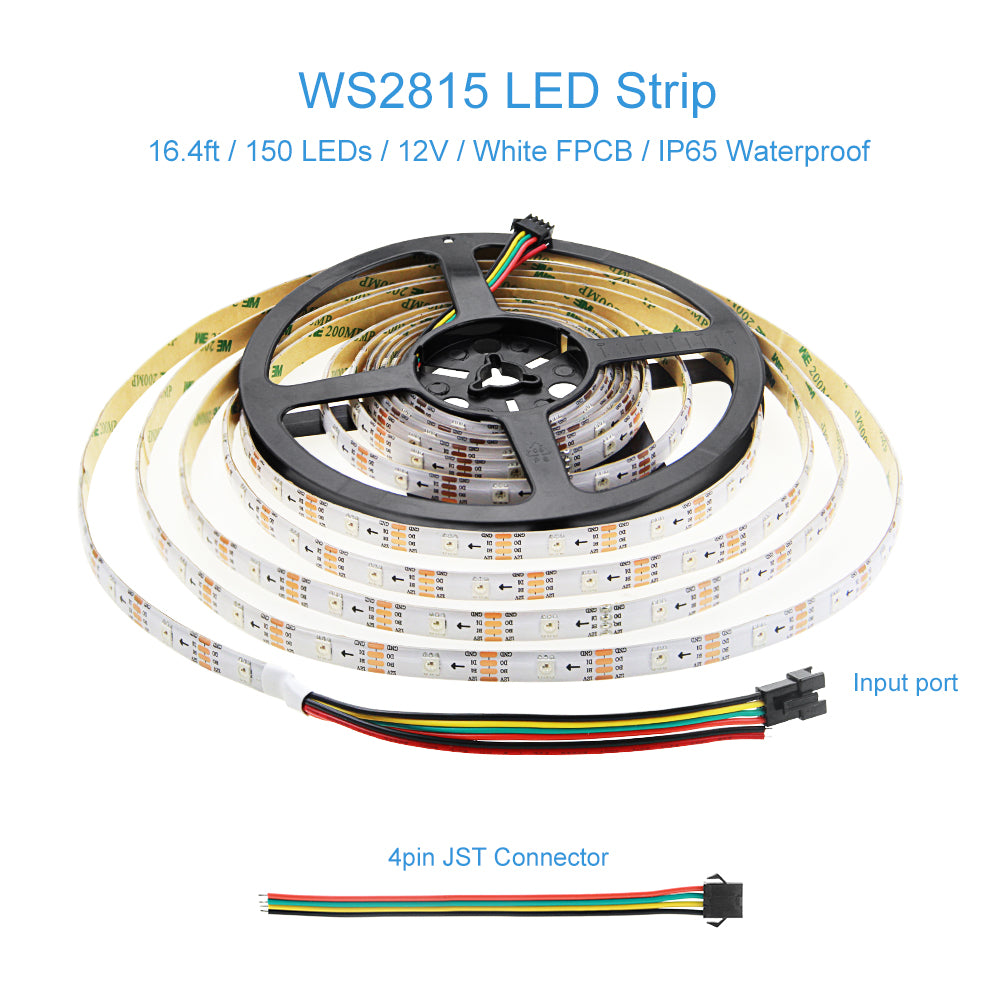

What you will get:

• 1x 16.4ft 150 pixels WS2815 led strip (Power supply and controller are not included)

• 1x 4PIN JST connector

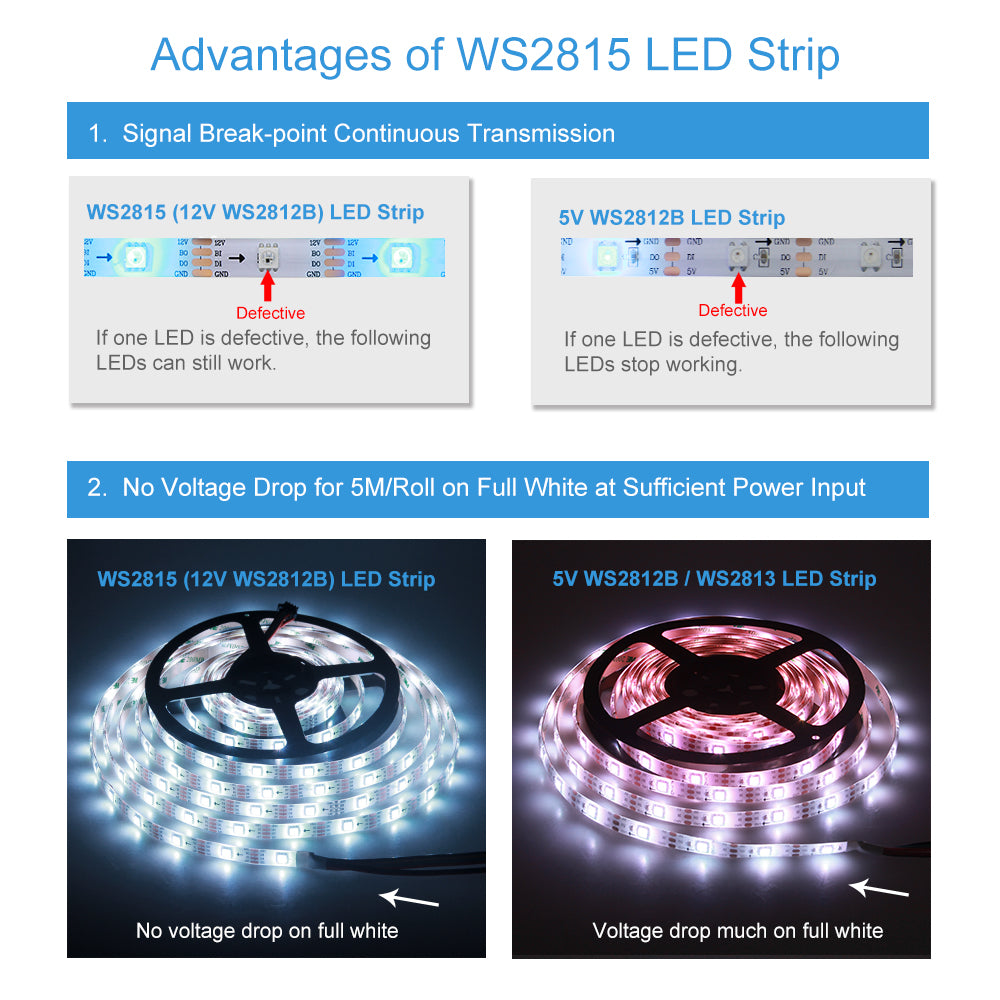

• 【12V WS2815 LED Strip】 WS2815 LED strip is upgraded version of 5V WS2813 / WS2812B LED strip. For 5M LED strip, even if all the LEDs are turned on full white, 12V version has no voltage drop. You don’t need to inject power as frequently as 5V version.

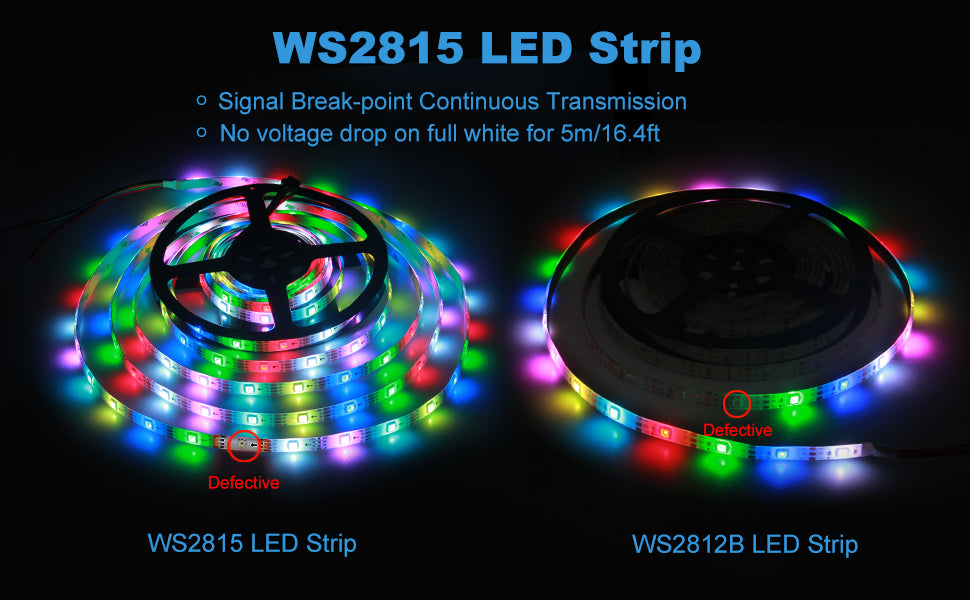

• 【Dual-signal wires】 Designed with one data wire and one backup data wire. . Signal break-point continuous transmission. If one LED is damaged, the following LEDs can still work.
• 【Individually addressable】Each pixel can have its own color and brightness. You can control it individually and set them to any color or animation you want. 256 brightness display and 24-bit color display.
• 【Wide compatibility】It can be programmed with K1000C T1000S etc. It can also be controlled by SP105E SP108E pre-programmed app controllers and SP107E Colorful x2 sound activated music controllers.
• 【User-friendly Design】Designed with 4pin JST-SM connectors and separate power/ground wires on both ends for easy hooking up and injecting power. Covered by IP65 waterproof silicone coating, which protects it very well. Self-adhesive tape on back for easy installation on dry and flat surface.

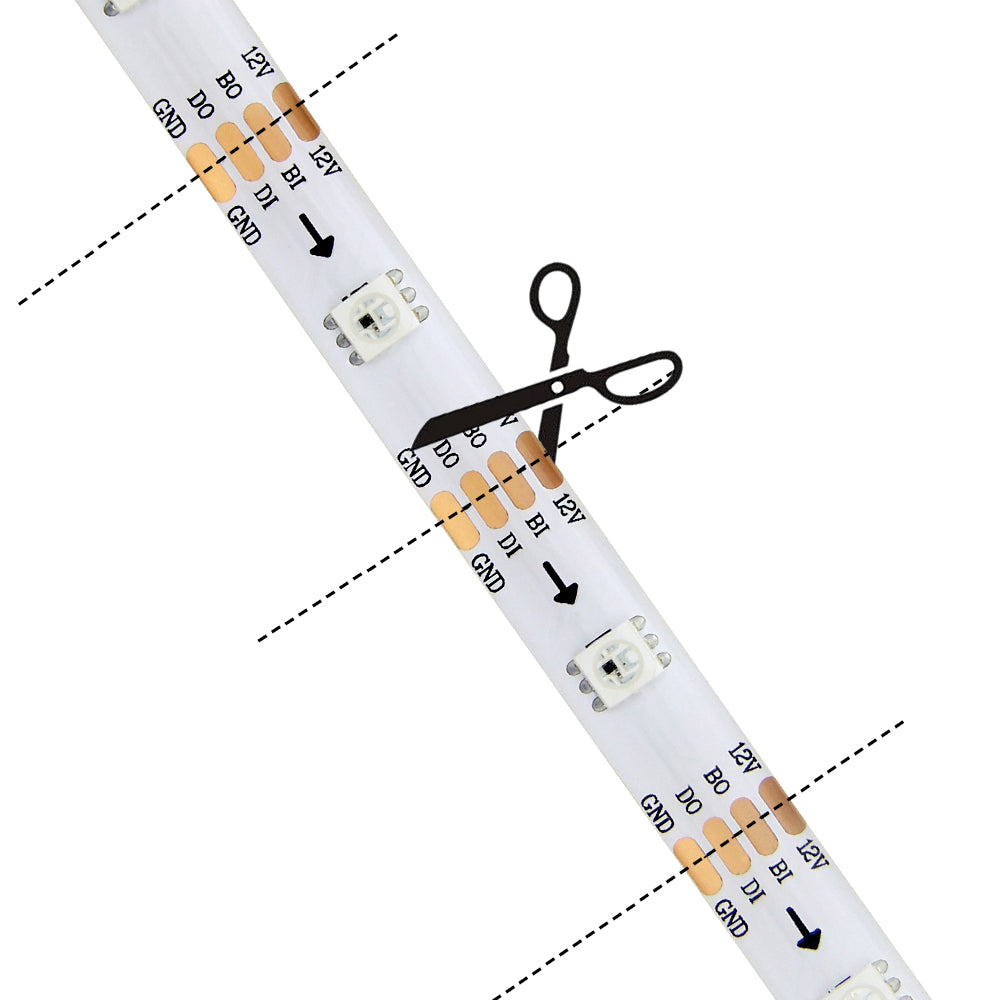

Cut and weld freely

Each LED is an independent and complete circuit cell. It can be cut and welded at the cutting line to meet your requirements.

Cut and weld freely

Each LED is an independent and complete circuit cell. It can be cut and welded at the cutting line to meet your requirements.

Chainable design

There are 4pin JST connectors on both ends. The LED strips can be hooked up one by one without soldering.

Waterproof IP65

Silicone waterproof coating covers the led strip, protecting it very well. Waterproof grade reaches IP65. It can be used outdoor.
